Xerox PHASER 7500 - REP 11.16 Left Cover-STM

8-126 Phaser 7500 Printer Service Manual
Service Parts Disassembly
REP 11.16 Left Cover-STM
PL11.7.1

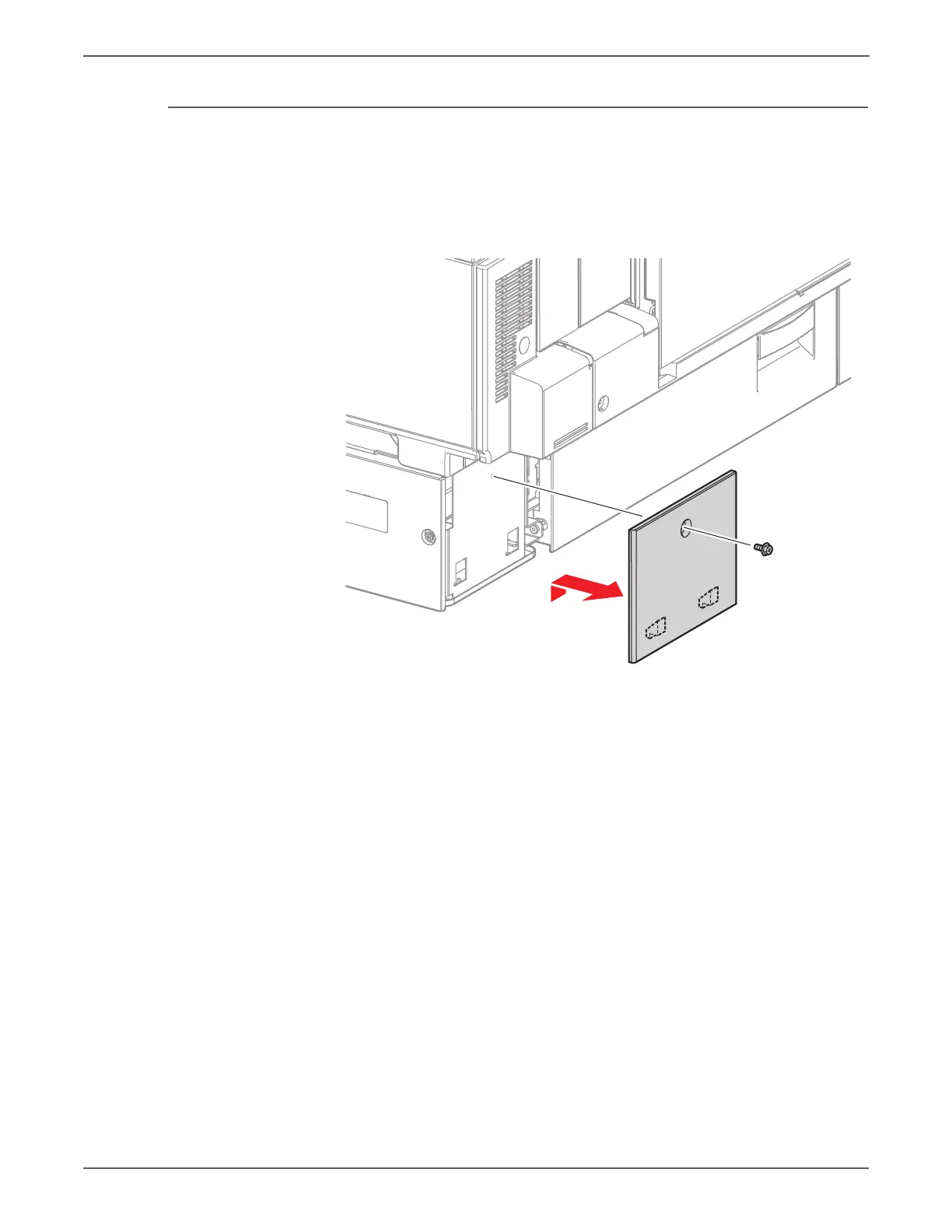

1. Remove 1 screw (silver, 8mm) that secures the Left Cover-STM to the Tray
Module (1T).
2. Lift the Left Cover to release the 2 hooks of the Left Cover-STM and remove it
from the Tray Module (1T).
s7500-187
