REP 10.7 Feed Roll/ Retard Roll/ Nudger Roll
PL10.4.2/ PL10.4.3/ PL10.4.4
1. Remove the Tray Assembly from the 1500-Sheet Feeder.
2. Slide the inner upper (when seen from the Tray Assembly insertion opening)
Chute towards you until it stops.
3. Release the hook of the Feed Roll/ Retard Roll/ Nudger Roll, pull out the Roll
from the Shaft and remove it.
Replacement Note

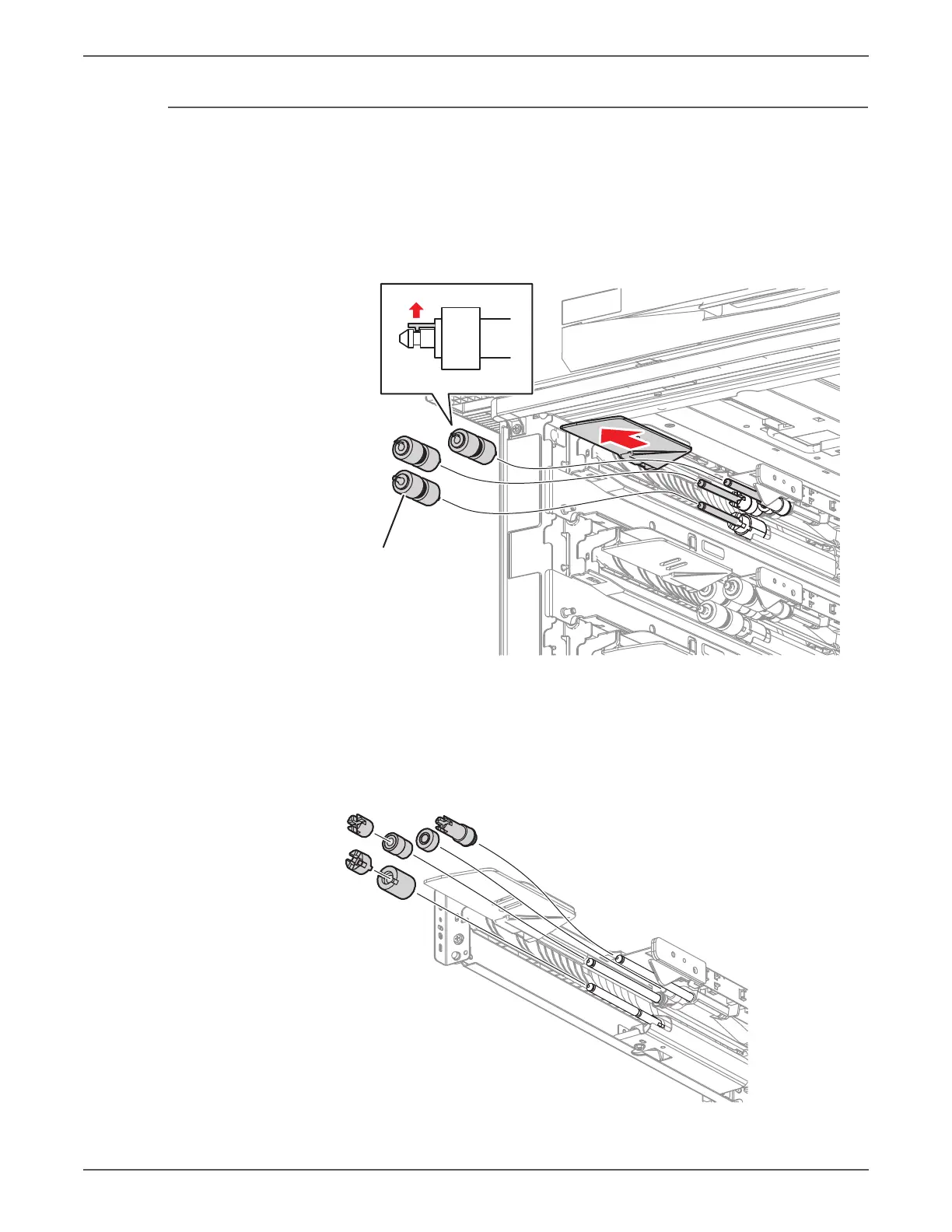

Be sure to reassemble the Rollers as in the illustration. If you find it difficult to
reassemble the parts at the base of each Roll, remove the Feeder Assembly to
perform the reassembly (refer to REP 10.1, page 8-90).
Roller Assembly
s7500-160
s7500-465
