Xerox PHASER 7500 Service Manual

Phaser 7500 Printer Service Manual 2-61
Theory of Operation
Tray Feed/ Lift Up Motor (PL9.4.3)
The drive channels for the Trays of Single Tray Module (STM) and 3 Tray Cabinet
are the same. Individual components for the tray are listed below.
Single Tray Module (STM)
• Tray 3/4/5 Feed/ Lift Up Motor (PL10.3.3)
• Helical Gear (29T/19T) (PL10.3.18)
• Feed Roll (PL10.4.2)
• Nudger Roll (PL10.4.3)
• Helical Gear (30T) (PL10.4.11)
• Spur Gear (29T) (PL10.4.13)
Tray 3/ 4/ 5
• Tray 3/4/5 Feed/ Lift Up Motor (PL10.3.3)
• Helical Gear (29T/19T) (PL10.3.18)
• Helical Gear (30T) (PL10.4.11)
• Feed Roll (PL10.4.2)
• Spur Gear (29T) (PL10.4.13)
• Nudger Roll (PL10.4.3)

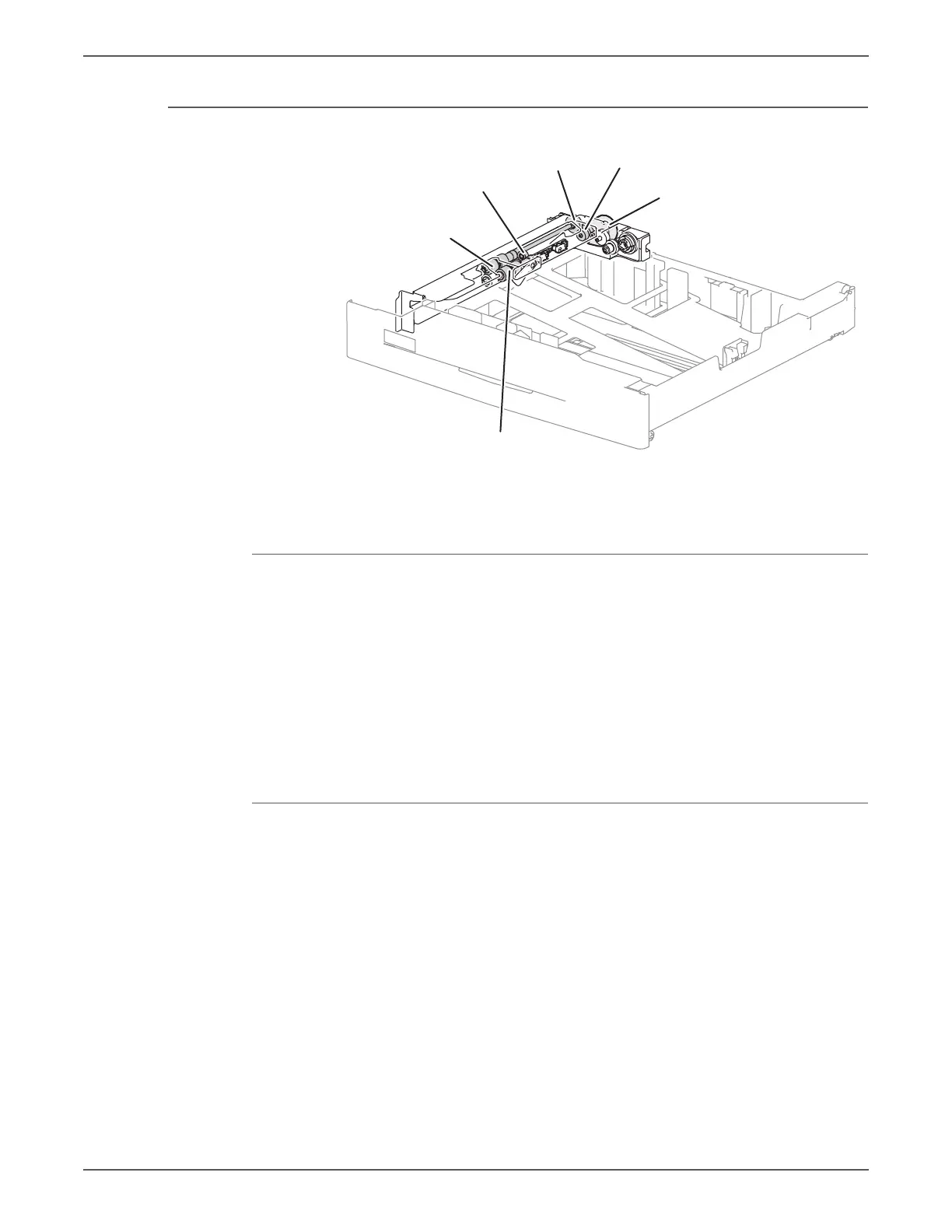

s7500-414
Tray1 Feed/Lift Up Motor
Helical Gear(29T/19T)
Helical Gear(30T)
Feed Roller
Nudger Roller
Spur Gear(29T)
