Xerox PHASER 7500 - REP 2.3 Imaging Unit Cover

Phaser 7500 Printer Service Manual 8-21
Service Parts Disassembly

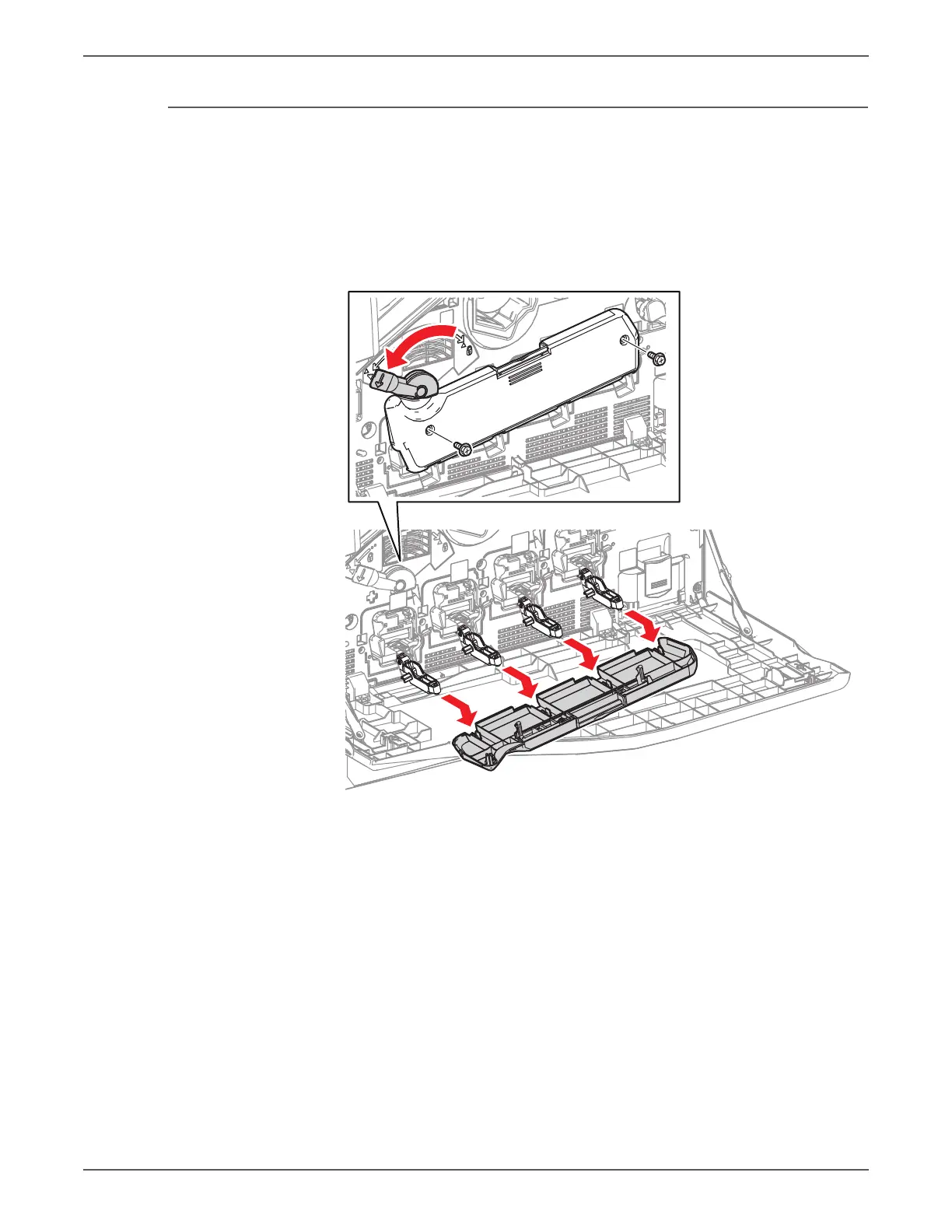

REP 2.3 Imaging Unit Cover
PL2.1.6
1. Open the Front Door.
2. Turn the Tension Lever to the left.
3. Remove 2 screws (silver, 8mm) that secure the Imaging Unit Cover.
4. Open the Imaging Unit Cover to the first detent and pull it towards the front
to remove.
s7500-075
