8-98 Phaser 7500 Printer Service Manual
Service Parts Disassembly
REP 10.10 Gear (34T)/ Gear (26T)/ Gear (39T)
PL10.9.2/ PL10.9.3/ PL10.9.4
1. Remove the Rear Cover Assembly (REP 10.19, page 8-107).
2. Remove the TM Takeaway Motor (REP 10.11, page 8-99).
3. Slide the Gears out to remove.

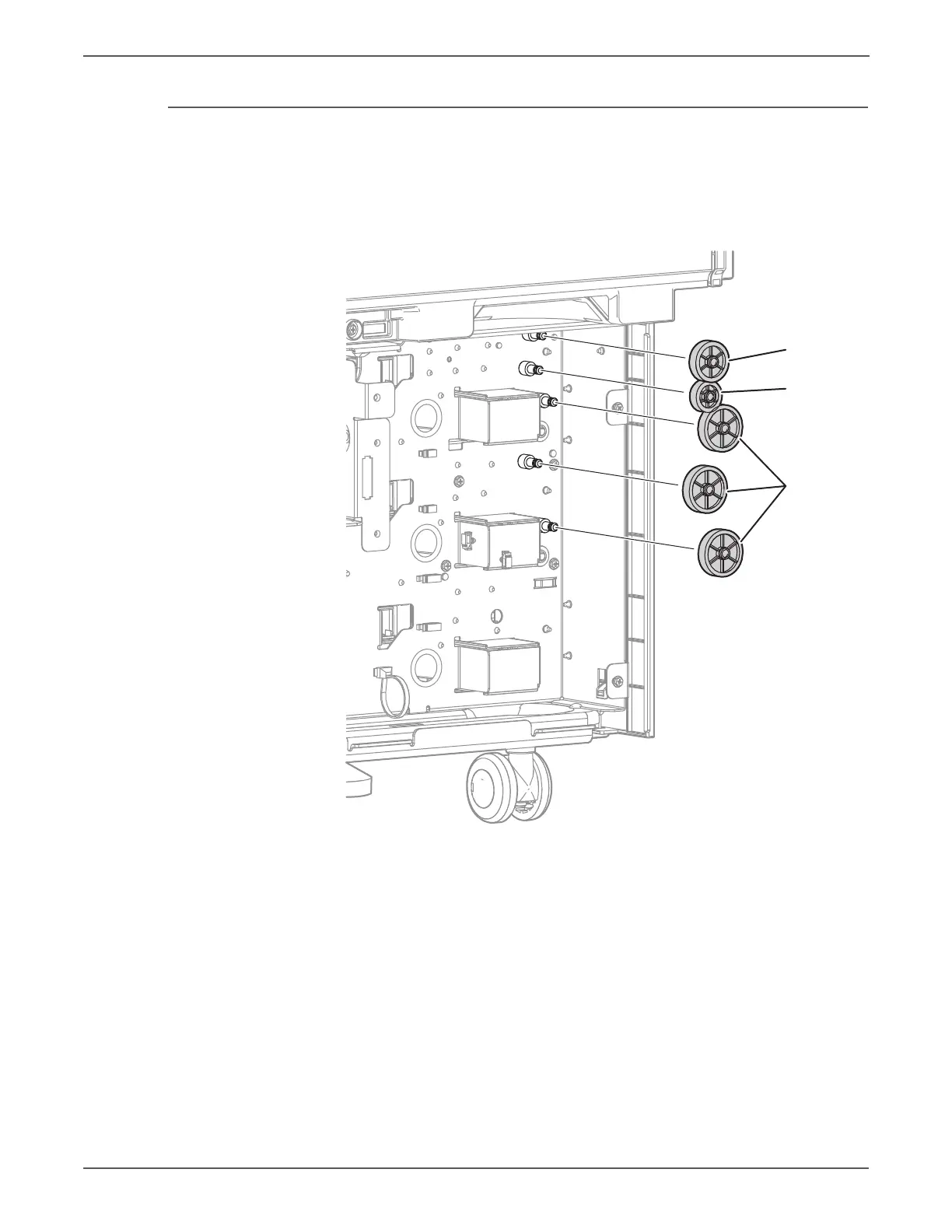

s7500-162
Gear 34T
Gear 26T
Gear 39T
