Service Parts Disassembly
REP 14.4 Pinch Chute Assembly
PL14.2.3
Caution
Do not touch the Roll surface of the 2nd BTR Assembly.
Note
When removing the Pinch Chute Assembly, be careful not to drop the spring.

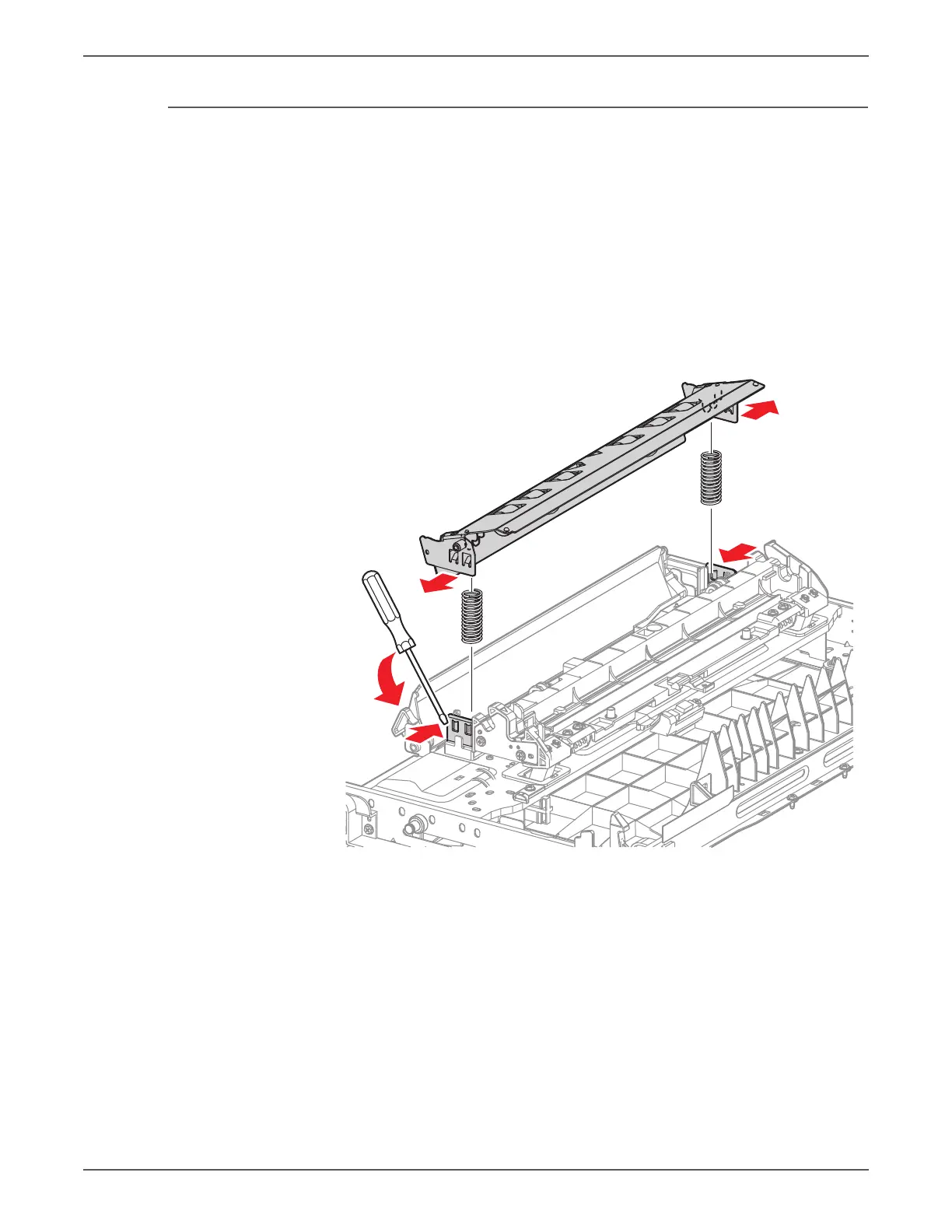

1. Push the Chute Assembly down (towards the Cover).
2. Use a flat tip screwdriver to press the right and left holders inwards to release
the hooks of the Pinch Chute Assembly, and remove the Pinch Chute
Assembly.
Replacement Note
When installing the Pinch Chute Assembly, make sure that the springs are
attached at the appropriate position.
s7500-212
