Xerox PHASER 7500 Service Manual

8-82 Phaser 7500 Printer Service Manual
Service Parts Disassembly
Tray 2 Feeder/ Tray 2
REP 9.1 Tray 2 Paper Size Sensor
PL9.1.6
1. Remove the Tray Assembly.
2. Disconnect the wiring harness connector P/J101 that is connected to the Tray
2 Paper Size Sensor.
3. Remove 1 screw (silver, 8mm) that secures the Tray 2 Paper Size Sensor to the
printer.
4. Remove the Tray 2 Paper Size Sensor from the hook at the installation section.

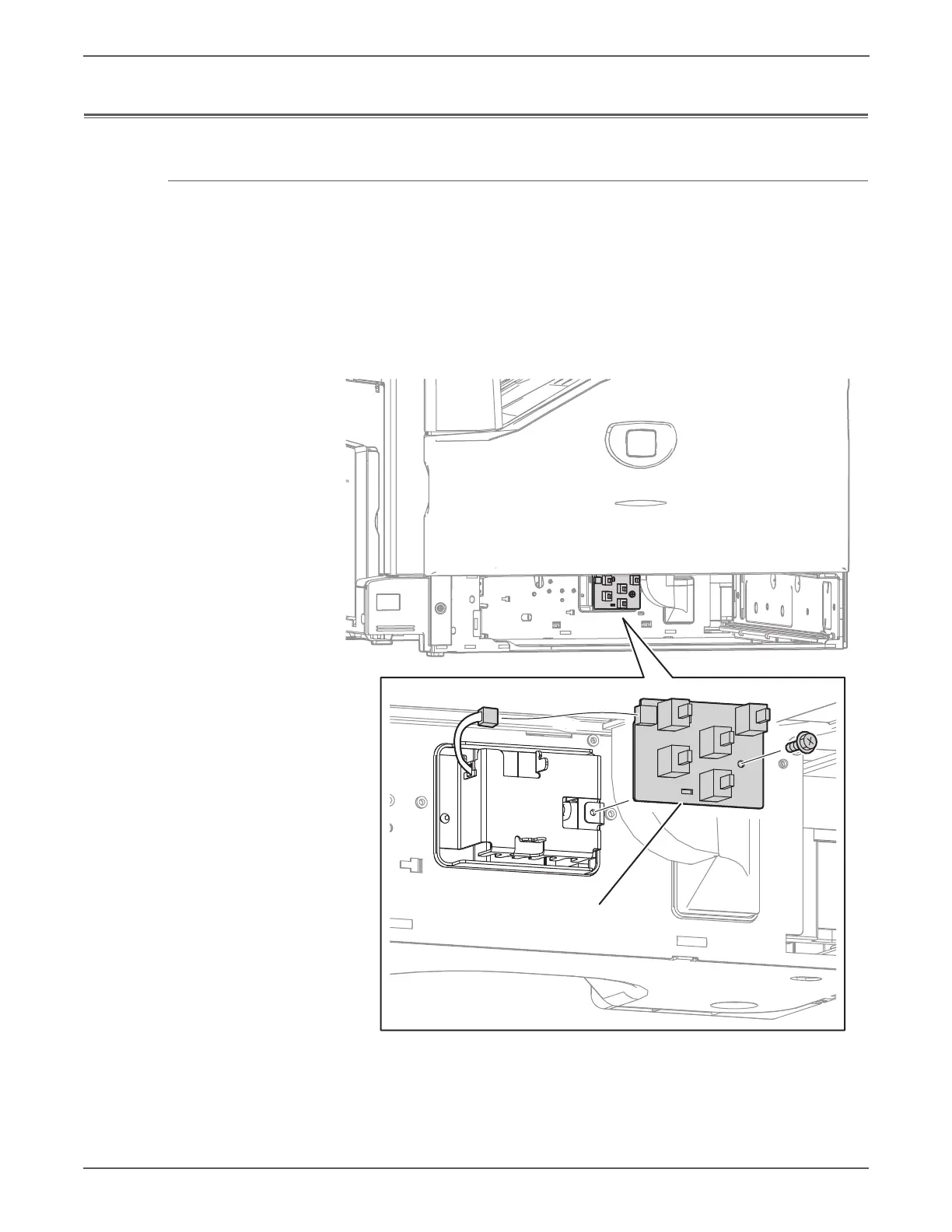

s7500-136
Tray 1 Paper Size Sensor
