Xerox PHASER 7500 - REP 11.8 Clutch Assy. (28 T); One-Way Clutch; Friction Clutch

8-118 Phaser 7500 Printer Service Manual
Service Parts Disassembly
REP 11.8 Clutch Assy. (28T)/ One-Way Clutch/ Friction Clutch
PL10.4.14. PL10.4.15/ PL10.4.19
1. Remove the Tray Assembly from the Tray Module (1T).
2. Remove the Feed/ Retard/ Nudger Rollers (REP 11.7, page 8-117).
3. Pull off each Clutch to remove it.

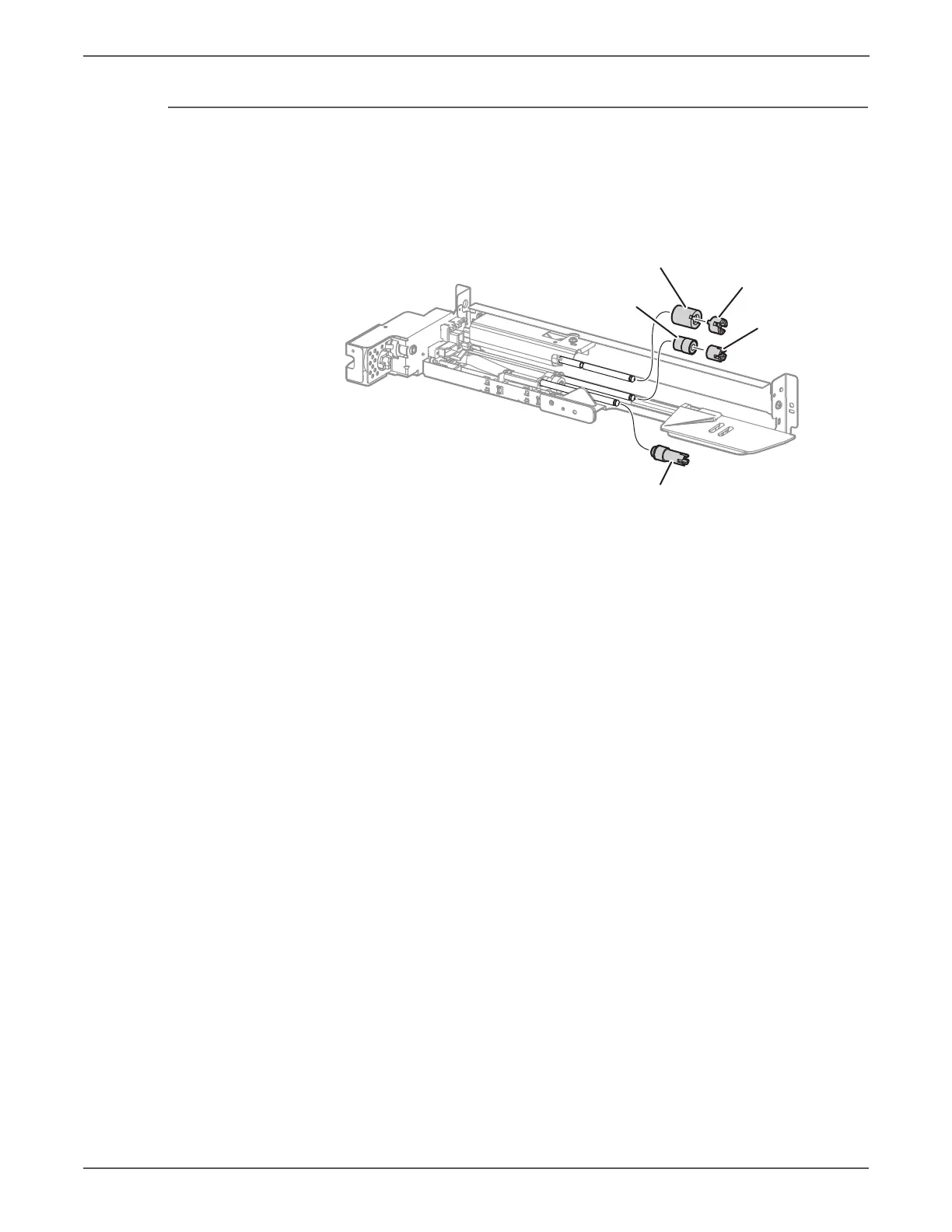

s7500-151
Gear 25
Friction Clutch
One Way Clutch
Clutch Assy (25T)
Spacer
