Xerox PHASER 7500 - REP 13.6 Feed Roll; Retard Roll; Nudger Roll

Phaser 7500 Printer Service Manual 8-135
Service Parts Disassembly
REP 13.6 Feed Roll/ Retard Roll/ Nudger Roll
PL13.3.17/ PL13.4.7
1. Remove the Top Cover (REP 13.5, page 8-134).
2. Insert your finger tip into the square hole to remove the Chute.
3. Release the hook of the Feed Roll/ Retard Roll/ Nudger Roll, pull out the Roll
from the Shaft and remove it.

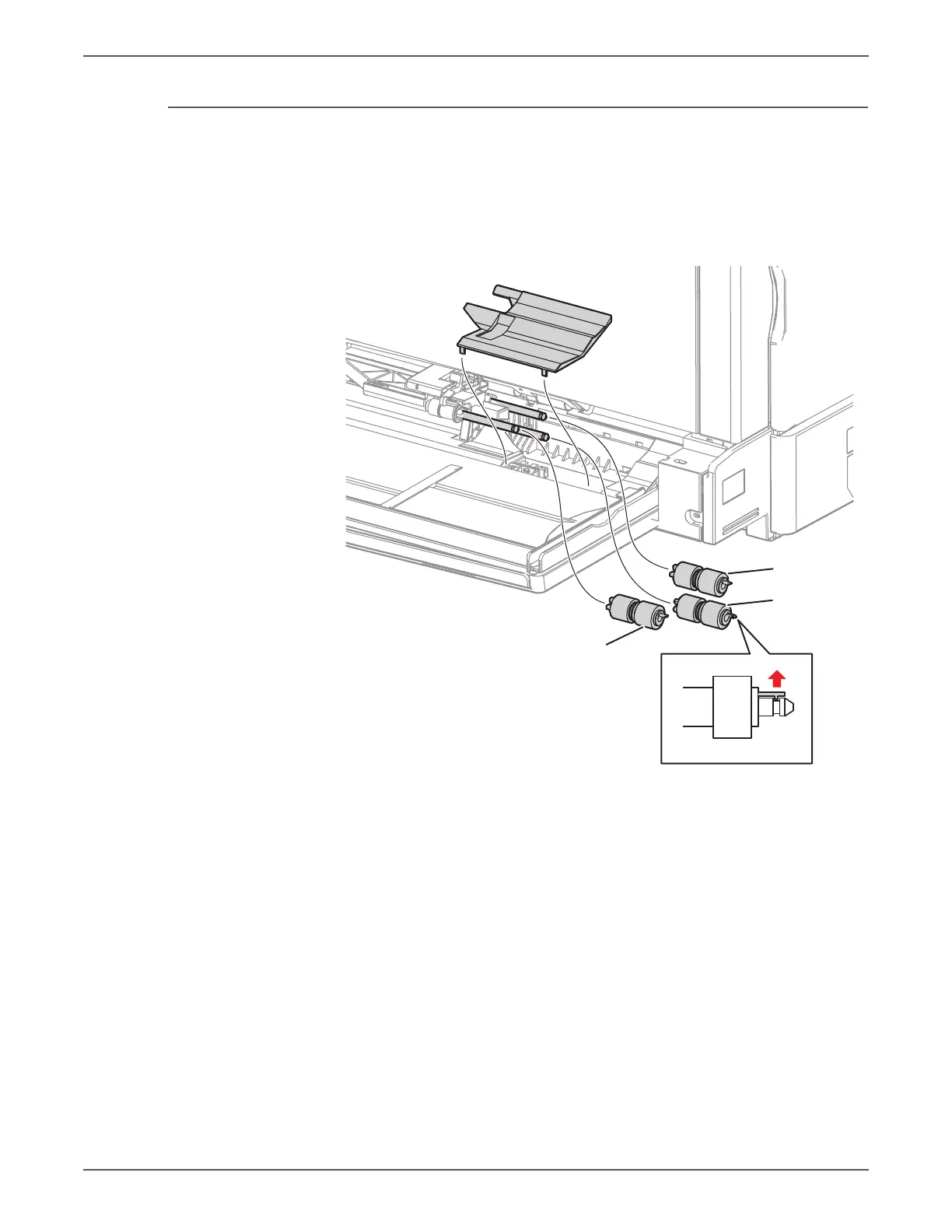

s7500-196
Feed Roller
Nudger Roller
Retard Roller
