Xerox PHASER 7500 Service Manual

8-130 Phaser 7500 Printer Service Manual
Service Parts Disassembly
Tray 1 (MPT)

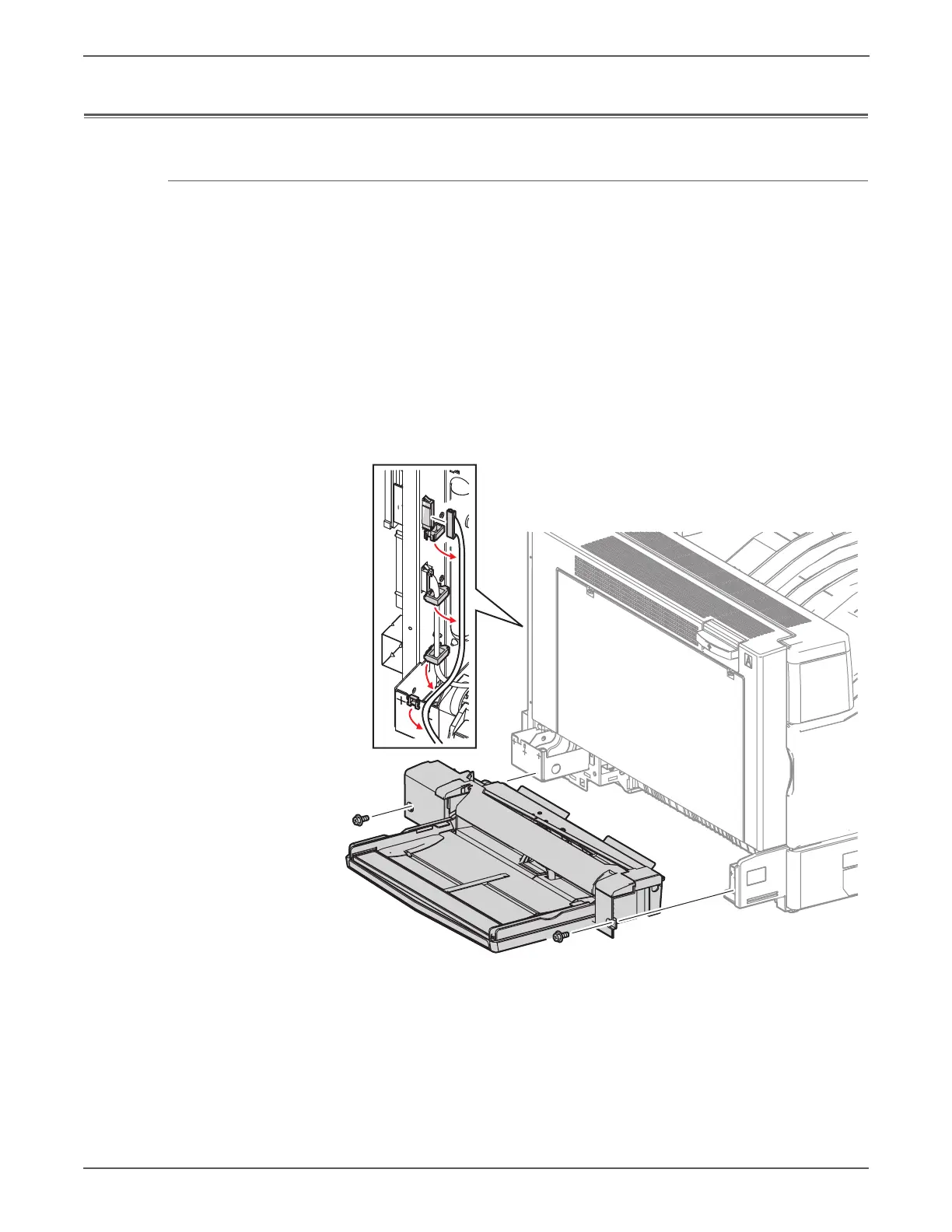

REP 13.1 Tray 1 Feeder Assembly
PL13.1.1
1. Remove the Top Rear Cover and the Rear Cover (REP 19.6, page 8-217).
2. Remove the Left Rear Cover (REP 19.4, page 8-215).
3. Open the Left Hand Cover Assembly.
4. Remove the wiring harness that is connected to the Tray 1 Feeder Assembly
from the 4 clamps.
5. Disconnect the wiring harness connector that is connected to the Tray 1
Feeder Assembly.
6. Close the Left Hand Cover Assembly (Door A).
7. Remove 2 screws (silver, 8mm) that secure the Tray 1 Feeder Assembly to the
printer and remove the Tray 1 Feeder Assembly.
s7500-191
