Xerox PHASER 7500 Service Manual

Phaser 7500 Printer Service Manual 8-177
Service Parts Disassembly
REP 15.5 Regi Sensor/ Actuator/ Spring
PL15.2.10/ PL15.2.11/ PL15.2.12
1. Remove the Regi Transport Assembly (REP 15.2, page 8-174).
2. Disconnect the wiring harness connectors that are connected to the 2 sensors
and remove the harness from the Harness Guide.

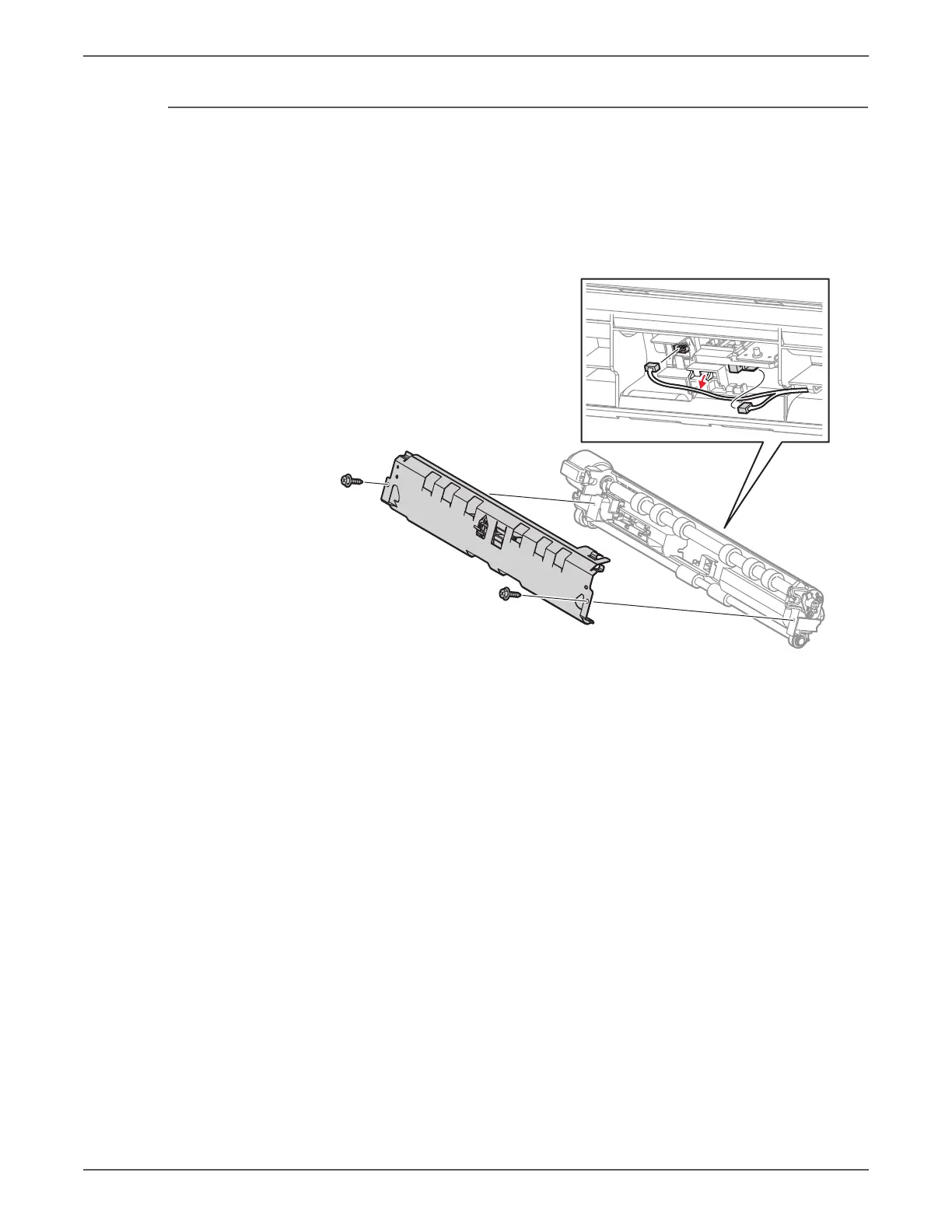

3. Remove 2 screws (silver, Tapped, 8mm) that secure the Inlet Chute Assembly
and remove the Inlet Chute Assembly.
s7500-238
