Xerox PHASER 7500 Service Manual

8-138 Phaser 7500 Printer Service Manual
Service Parts Disassembly
REP 13.9 Tray 1 Nudger Position Sensor

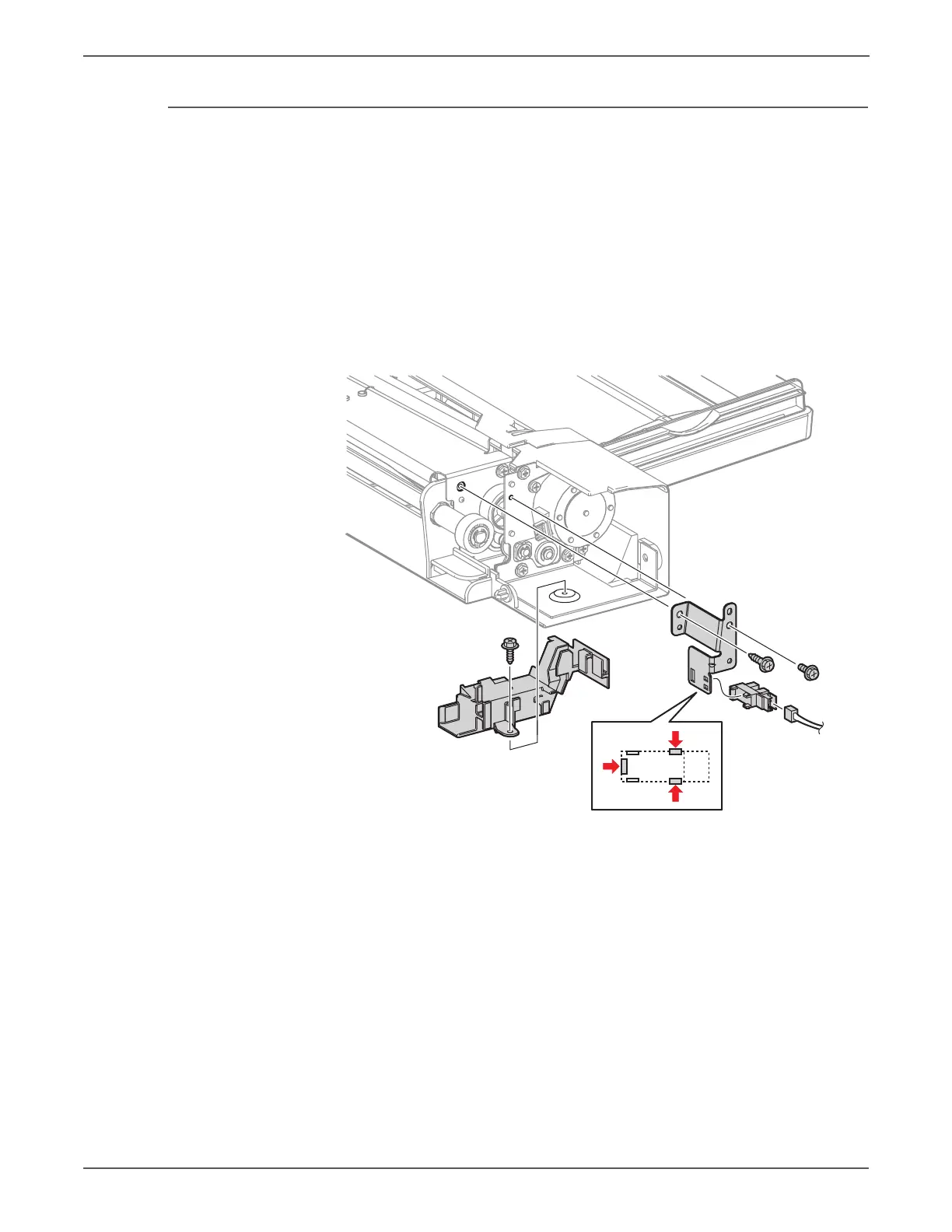

PL13.2.20
1. Remove the Tray 1 Feeder Assembly (REP 13.1, page 8-130).
2. Remove 1 screw (silver, Plastic Tapped, 8mm) that secures the Harness Holder
and slide the Harness Holder towards you to remove it.
3. Remove 1 screw (silver, Plastic Tapped, 8mm), and 1 screw (silver, 6mm) that
secure the Sensor Bracket Assembly and remove the Sensor Bracket Assembly.
You may have to rotate the gear to move the flag out of the sensor.
4. Disconnect the wiring harness connector that is connected to the Tray 1
Nudger Position Sensor.
5. Release the 3 hooks that secure the Tray 1 Nudger Position Sensor and remove
the Tray 1 Nudger Position Sensor.
