8-158 Phaser 7500 Printer Service Manual
Service Parts Disassembly
REP 14.10 2nd BTR Contact Retract Motor Assy./ 2nd BTR Contact Retract
Motor
PL14.4.8/ PL14.4.10
Caution
Do not touch the Roll surface of the 2nd BTR Assembly.
1. Remove the Retract Shaft Assembly (REP 14.8, page 8-153).
2. Remove the wiring harness from the Harness Guide.

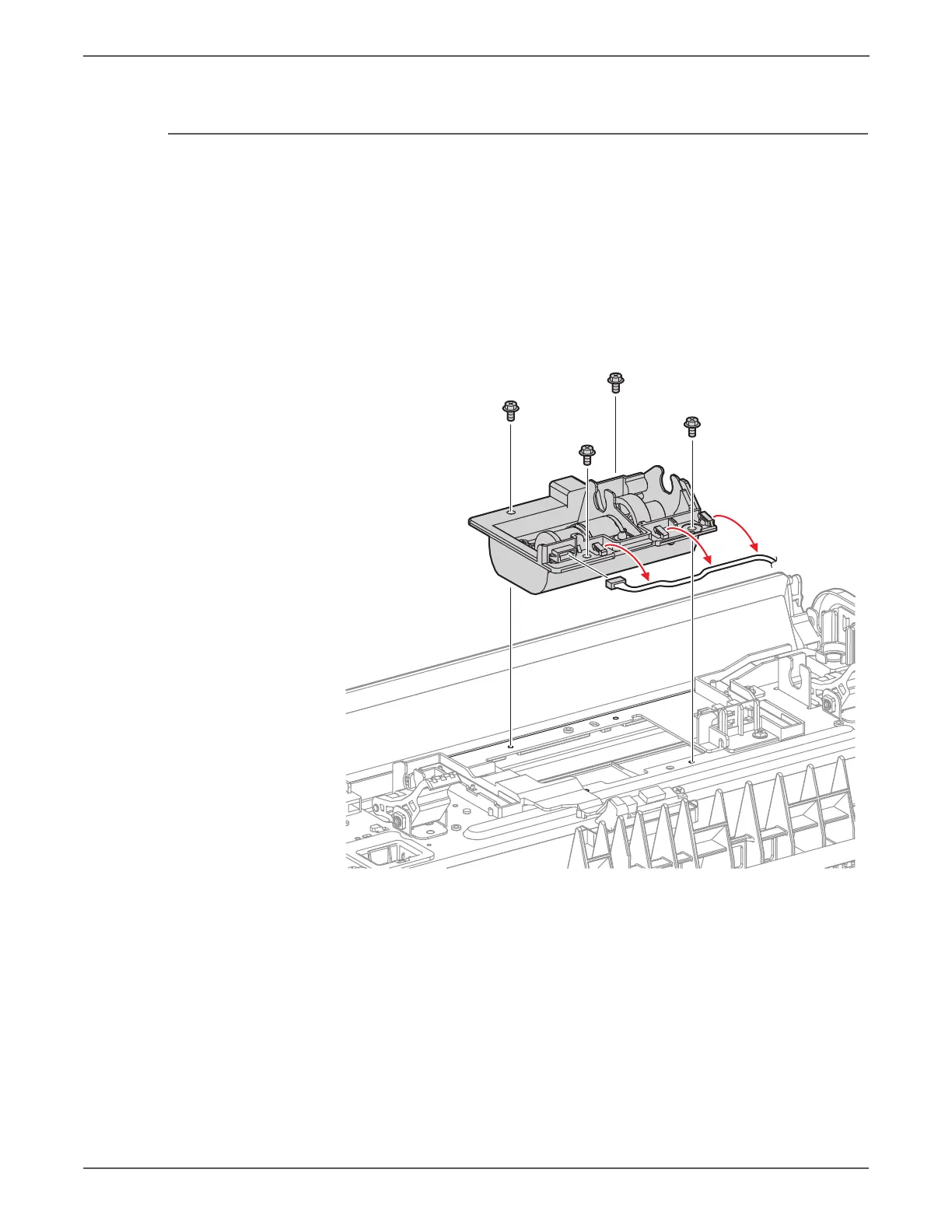

3. Remove 4 screws (silver, 6mm) that secure the 2nd BTR Contact Retract Motor
Assembly to the Left Hand Cover Assembly and remove the 2nd BTR Contact
Retract Motor Assembly.
s7500-219
