5-28 Phaser 7500 Printer Service Manual
Print-Quality Troubleshooting
IQ-4 SLED Transfer Cycle Stripes
Cyclical matte stripes or black stripes appear in the process direction. The pitch
changes depending on the process speed.
Cause
• Poor connection of Flat Cable between the MCU and the LPH.
Initial Actions
• Check the paper transfer path.
• Ensure there are no debris on the transfer path.
Note
Do not replace the LED Print Head without consideration.
Troubleshooting Reference

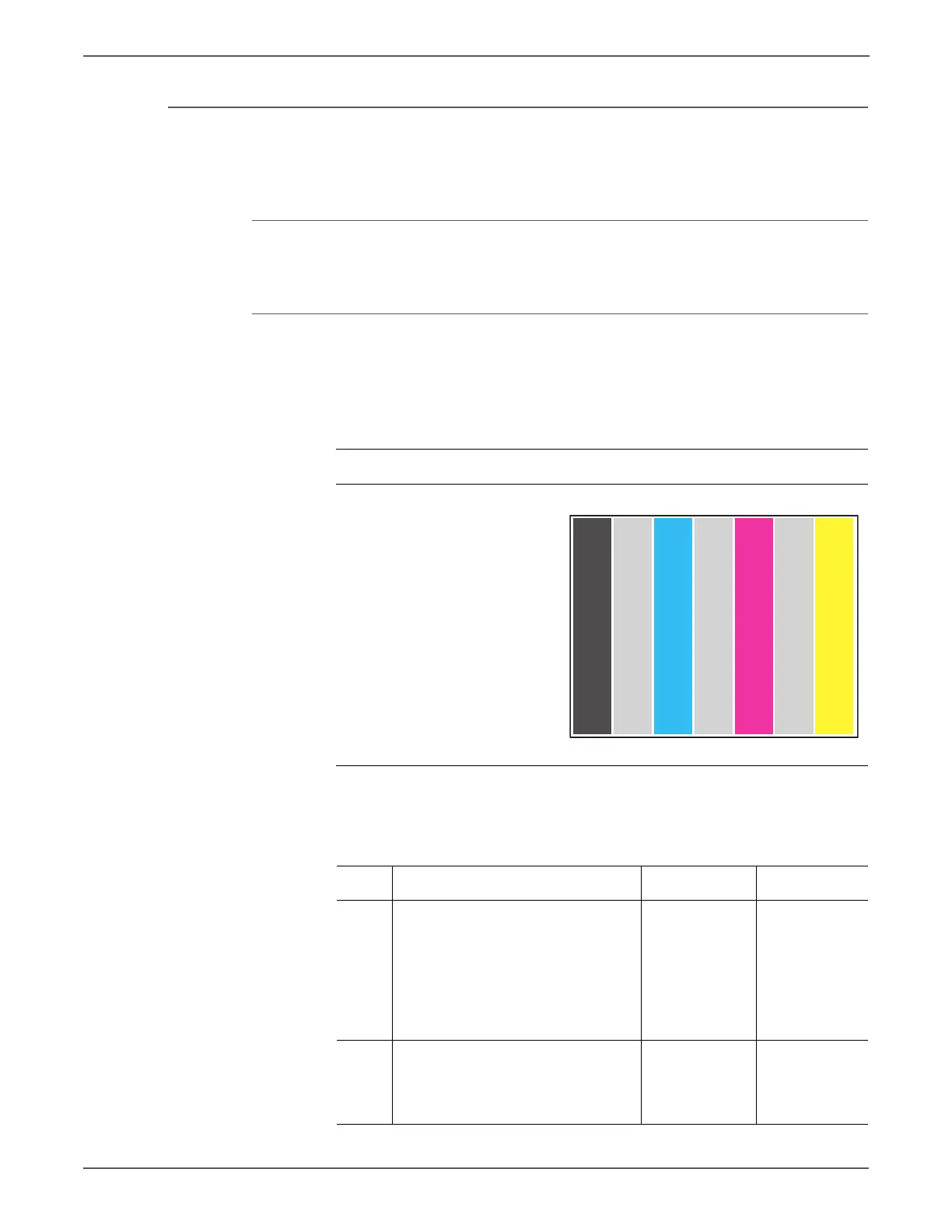

Applicable Parts Example Print
■ LED Print Head, PL2.1.2
■ FFC Cable, PL2.2.1
■ MCU PWB, PL18.3.6
Troubleshooting Procedure
Step Actions and Questions Yes No
1 Verify that the problem does not
occur in Step Pattern prints.
Does error occur?
Replace the
LED Print Head
(REP 2.1,
page 8-18).
Go to step 2.
Check for
connection
mistake and
scratches/
damages on
the FFC Cable.
Go to step 2.
2 Does the error still occur? Replace the
MCU PWB
(REP 18.12,
page 8-202).
Replace the
FFC Cable.
SLED Transfer Cycle Stripes
