Xerox PHASER 7500 Service Manual

Phaser 7500 Printer Service Manual 8-87
Service Parts Disassembly
REP 9.14 Feed Roll/ Retard Roll/ Nudger Roll
PL9.5.2/ PL9.5.3/ PL9.5.4

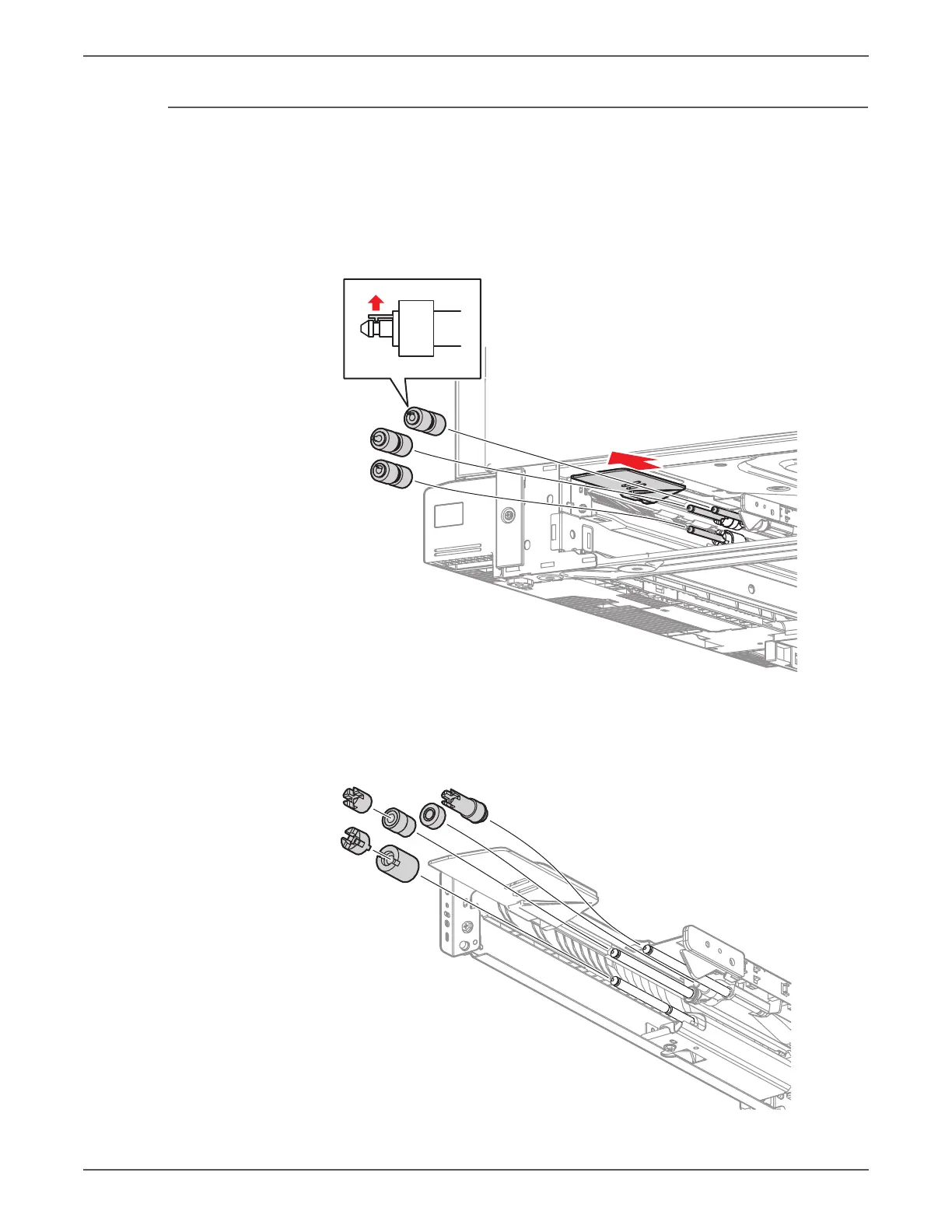

1. Remove the Tray Assembly.
2. Slide the inner upper Chute (looking from the Tray Assembly insertion
opening) towards you until it stops.
3. Release the hook of the Feed Roll/Retard Roll/ Nudger Roll, pull out the Roll
from the Shaft and remove it.
Replacement Note
If you find it difficult to reassemble the parts at the base of each Roll, remove
the Tray 1 Feeder Assembly to perform the reassembly (REP 9.9, page 8-83).
s7500-150
s7500-464
