Xerox PHASER 7500 Service Manual

8-142 Phaser 7500 Printer Service Manual
Service Parts Disassembly
REP 13.12 Upper Frame Assembly
PL13.2.1
1. Remove the Tray 1 Feeder Assembly (REP 13.1, page 8-130).
2. Remove the Tray 1 Nudger Position Sensor (REP 13.9, page 8-138).
3. Disconnect the wiring harness connector that is connected to the Tray 1 Feed/
Nudger Motor.
Note
When removing the Tray 1 Feed/ Nudger Motor Assembly in the following
step, be careful not to drop the Gear (29T/19T) and Gear (31T/15T) may drop.
4. Remove 3 screws (silver, 6mm, and Silver, Plastic Tapped, 8mm) that secure
the Tray 1 Feed/ Nudger Motor Assembly to the Tray 1 Feeder Assembly
together with the Ground Wire, and remove the Tray 1 Feed/ Nudger Motor
Assembly.
5. Remove the Gear (29T/19T) and Gear (31T/15T).

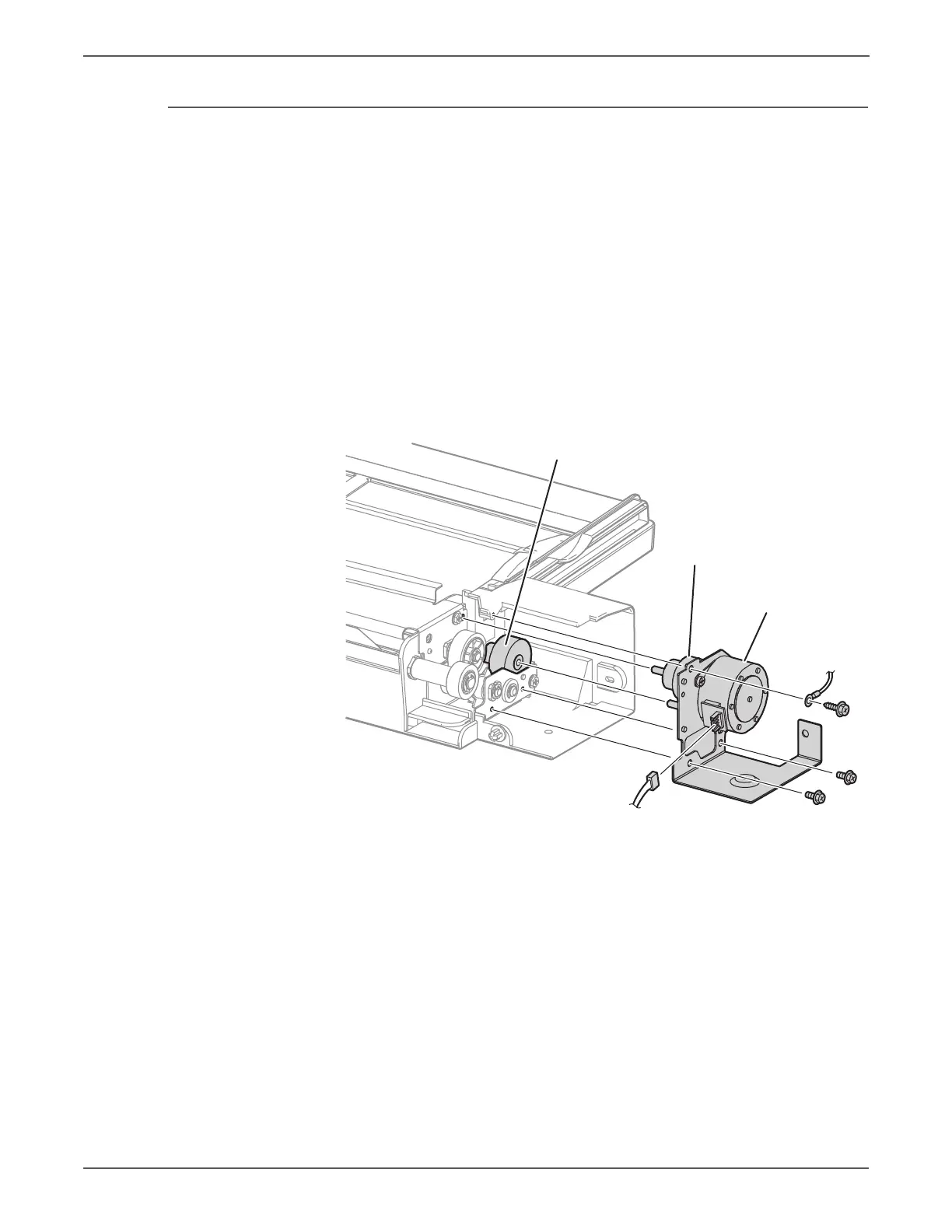

s7500-202
Gear(31T/15T)
MPT (Tray 1)
Feed/Nudger
Motor Assy
Gear(29T/19T)

Xerox PHASER 7500 Specifications

General

Max Print Resolution	1200 x 1200 dpi
Monthly Duty Cycle	150, 000 pages
Standard Paper Capacity	550 sheets
Duplex Printing	Optional
Standard Memory	256 MB
Network Connectivity	10/100/1000Base-T Ethernet
Supported Operating Systems	Windows, Mac OS, Linux
Max Paper Capacity	2, 100 sheets
Connectivity	USB 2.0, Ethernet
PDL	PostScript 3, PCL 6, PDF
Print Speed	Up to 35 ppm
