Xerox PHASER 7500 - REP 8.10 Drive Shaft Assembly

Phaser 7500 Printer Service Manual 8-79
Service Parts Disassembly
REP 8.10 Drive Shaft Assembly
PL8.2.12

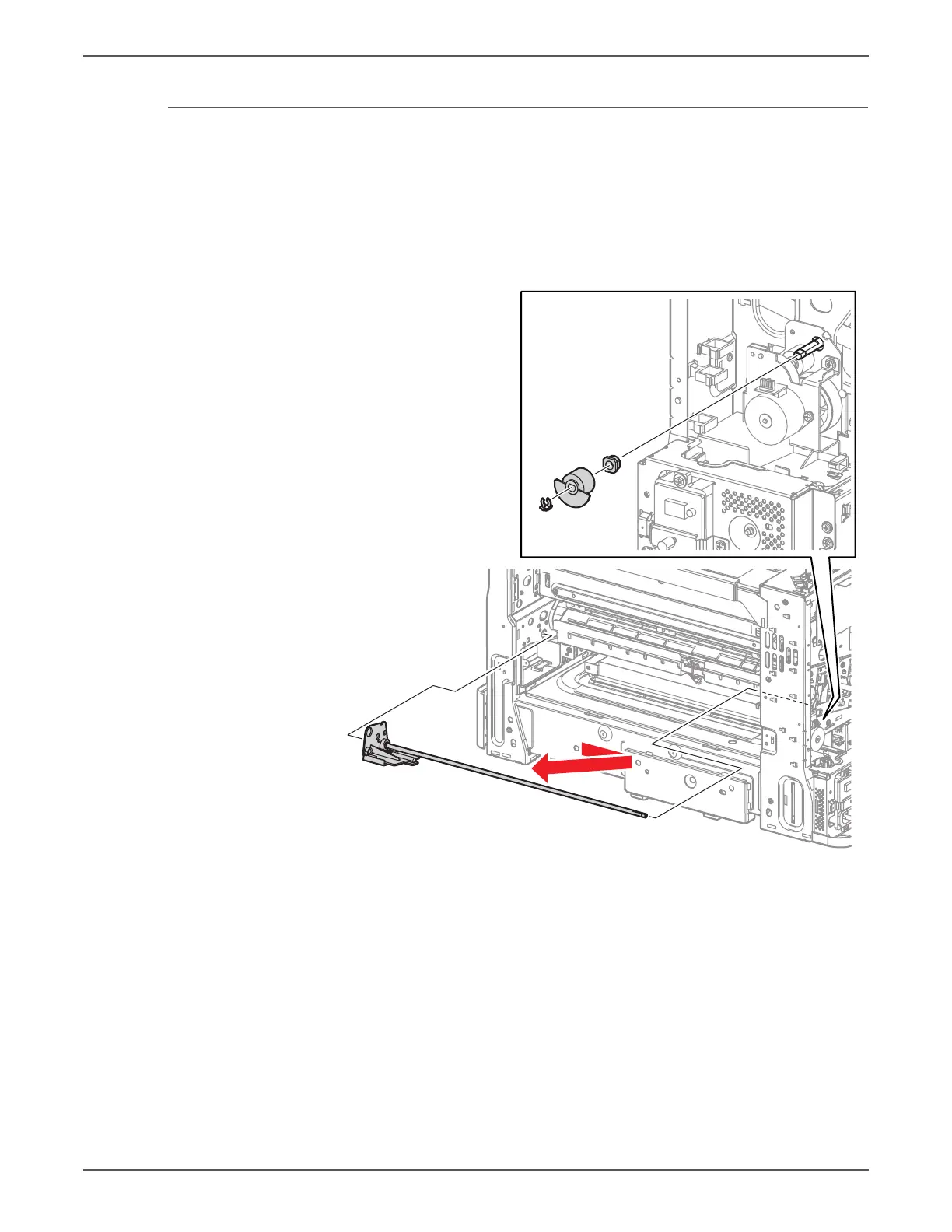

1. Remove the Gear Bracket Assembly (REP 8.9, page 8-78).
2. Remove the KL Clip that secures the Gear and remove the Gear.
3. Remove the Sleeve Bearing.
4. Shift the Drive Shaft Assembly to the rear temporarily, and remove the Drive
Shaft Assembly from the front.
s7500-133
