Phaser 7500 Printer Service Manual 8-171
Service Parts Disassembly
REP 14.20 Duplex Cover Switch
PL14.6.25
1. Remove the Duplex Assembly (REP 14.12, page 8-161).
2. Remove the Inner Chute Assembly (REP 14.15, page 8-165).
3. Disconnect the wiring harness connector that is connected to the Duplex
Cover Switch.

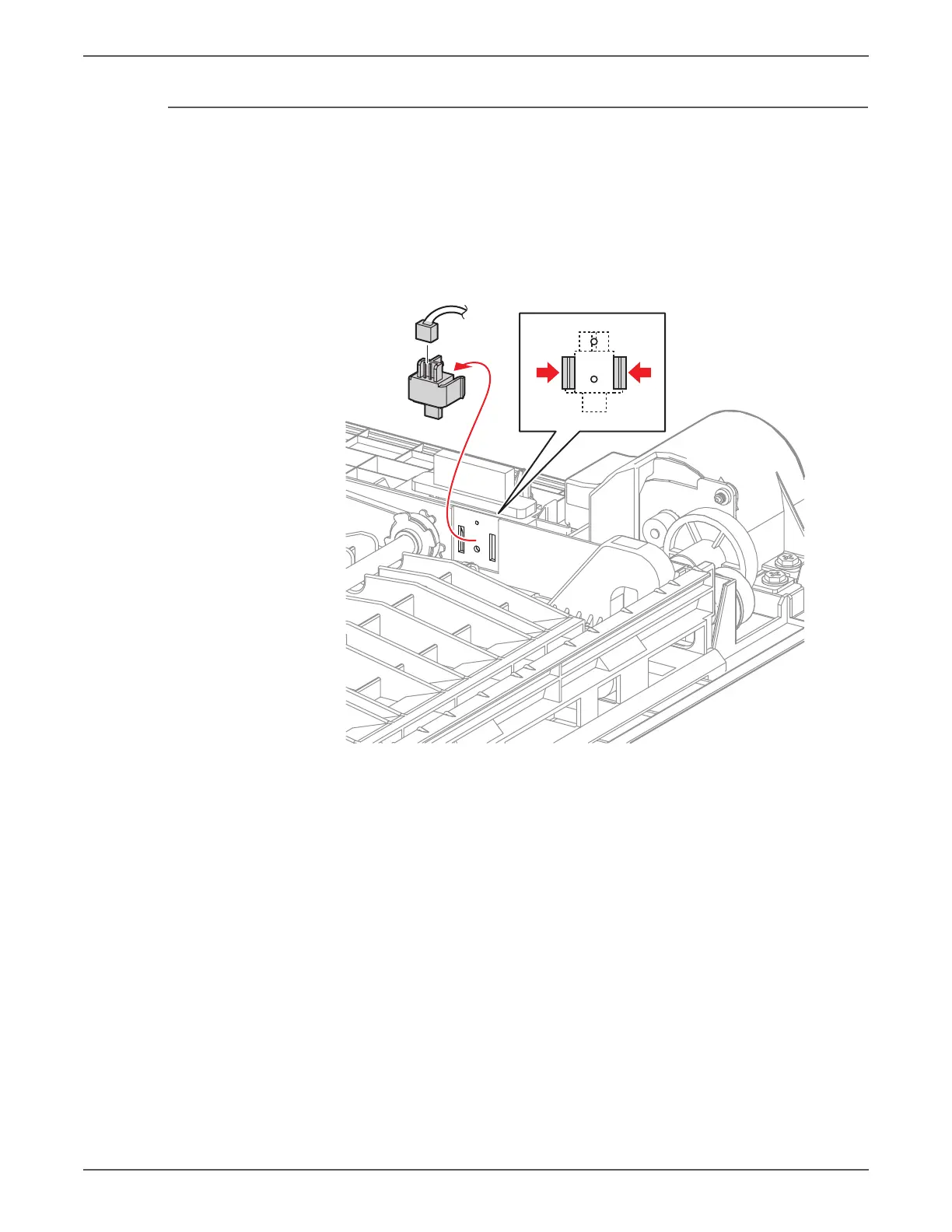

4. Release the 2 hooks that secure the Duplex Cover Switch to the Duplex
Assembly and remove the Duplex Cover Switch.
To Next Page
