Xerox PHASER 7500 Service Manual

9-32 Phaser 7500 Printer Service Manual
Parts List

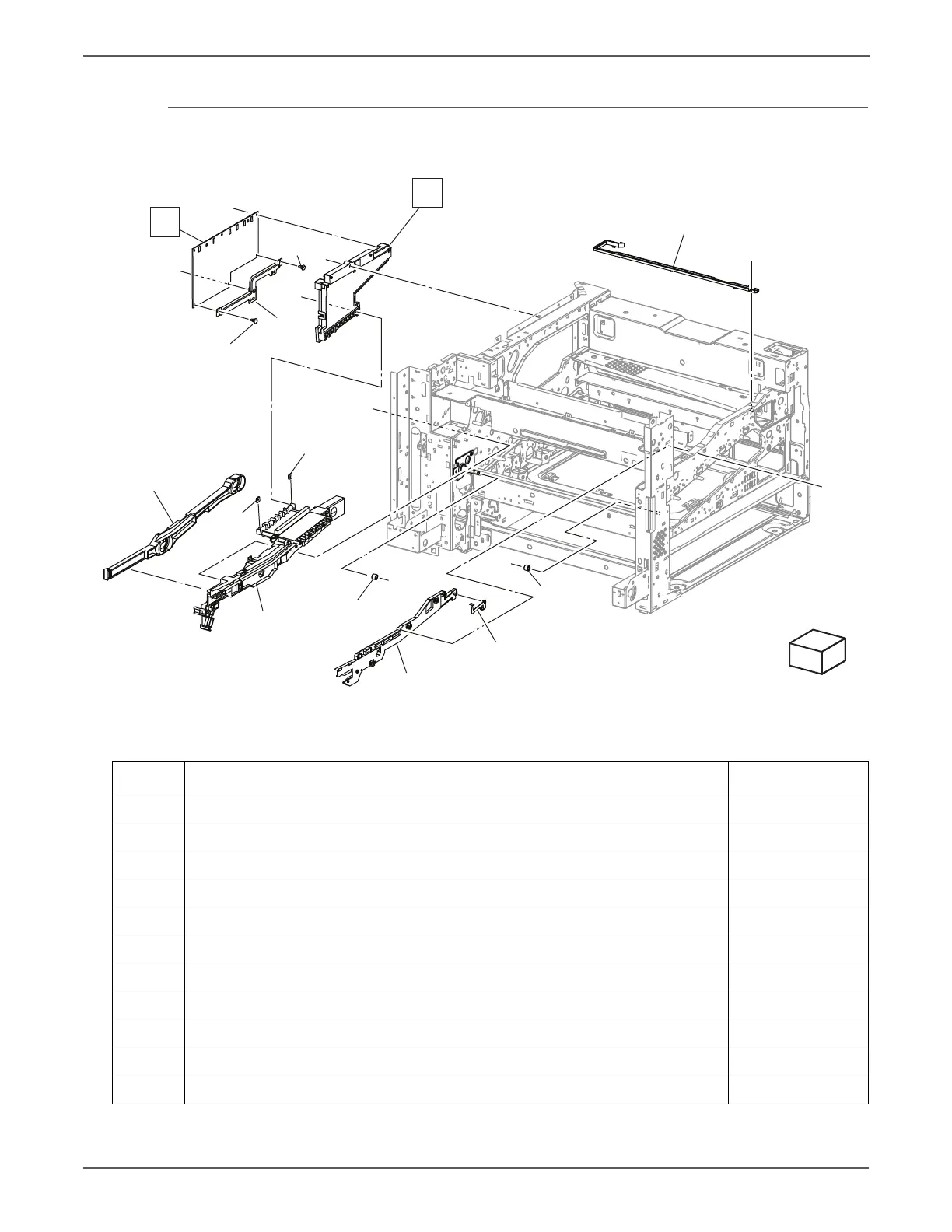

Parts List 6.2 Transfer (2 of 2)
Parts List 6.2 Transfer (2 of 2)
Item Description Part Number
1Plate Nut
2 IBT Cleaner Guide 032E27411
3Metal Bearing
4 IBT Front Guide 032E27610
5 Conductor
6Actuator 120E29340
7 IBT Rear Guide 032K05310
8 Conductor Housing Assembly (REP 6.3, page 8-64) 848K13960
9 HVPS (1ST/2ND/DTS) (REP 6.4, page 8-65) 105E17530
10 PWB Support
11 Bracket
F
ront
Left
s7500-016
AC
BS
BS
L
L
L
AC
L
J
6
1
2
8
11
10
10
1
7
5
4
3
3
PL 6.2
9
