Xerox PHASER 7500 Service Manual

8-90 Phaser 7500 Printer Service Manual
Service Parts Disassembly
1500-Sheet Feeder (Option)

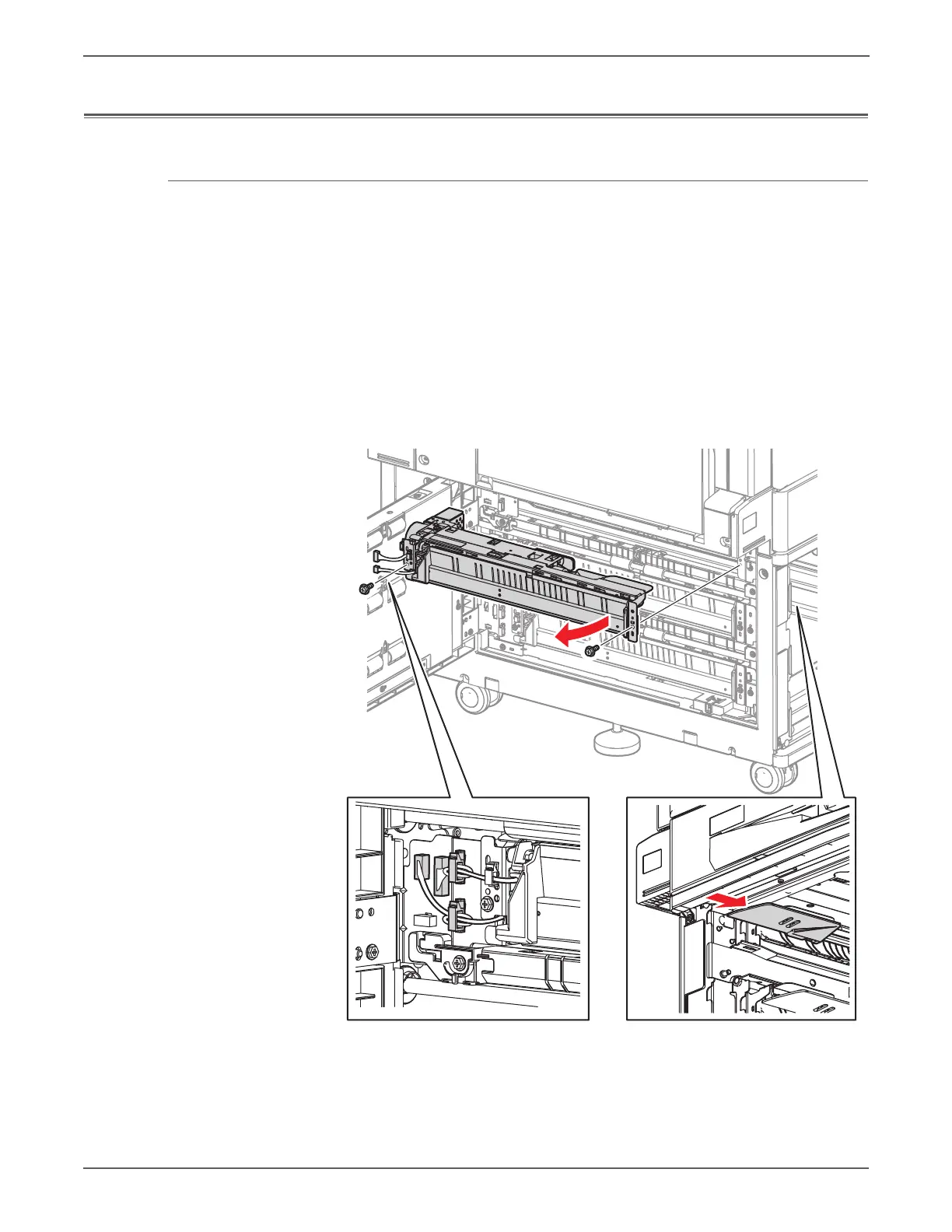

REP 10.1 Tray 3/4/5 Feeder Assembly/ Feed Out Chute
PL10.1.1/ PL10.1.2/ PL10.1.3
1. Remove the Tray Assembly from the Tray Module (3T).
2. Slide the inner upper (when seen from the Tray Assembly insertion opening)
Chute towards the rear until it stops.
3. Release the clamp that secures the wiring harness that is connected to the
Feeder Assembly and disconnect the wiring harness connectors (P/J661, P/
J669).
4. Remove 2 screws (silver, 8mm) that secure the Feeder Assembly to the Tray
Module (3T).
5. Pull out the front side of the Feeder Assembly towards you to remove the
Feeder Assembly from the Tray Module (3T).
s7500-154

Xerox PHASER 7500 Specifications

General

Max Print Resolution	1200 x 1200 dpi
Monthly Duty Cycle	150, 000 pages
Standard Paper Capacity	550 sheets
Duplex Printing	Optional
Standard Memory	256 MB
Network Connectivity	10/100/1000Base-T Ethernet
Supported Operating Systems	Windows, Mac OS, Linux
Max Paper Capacity	2, 100 sheets
Connectivity	USB 2.0, Ethernet
PDL	PostScript 3, PCL 6, PDF
Print Speed	Up to 35 ppm
