Phaser 7500 Printer Service Manual 8-91

Service Parts Disassembly

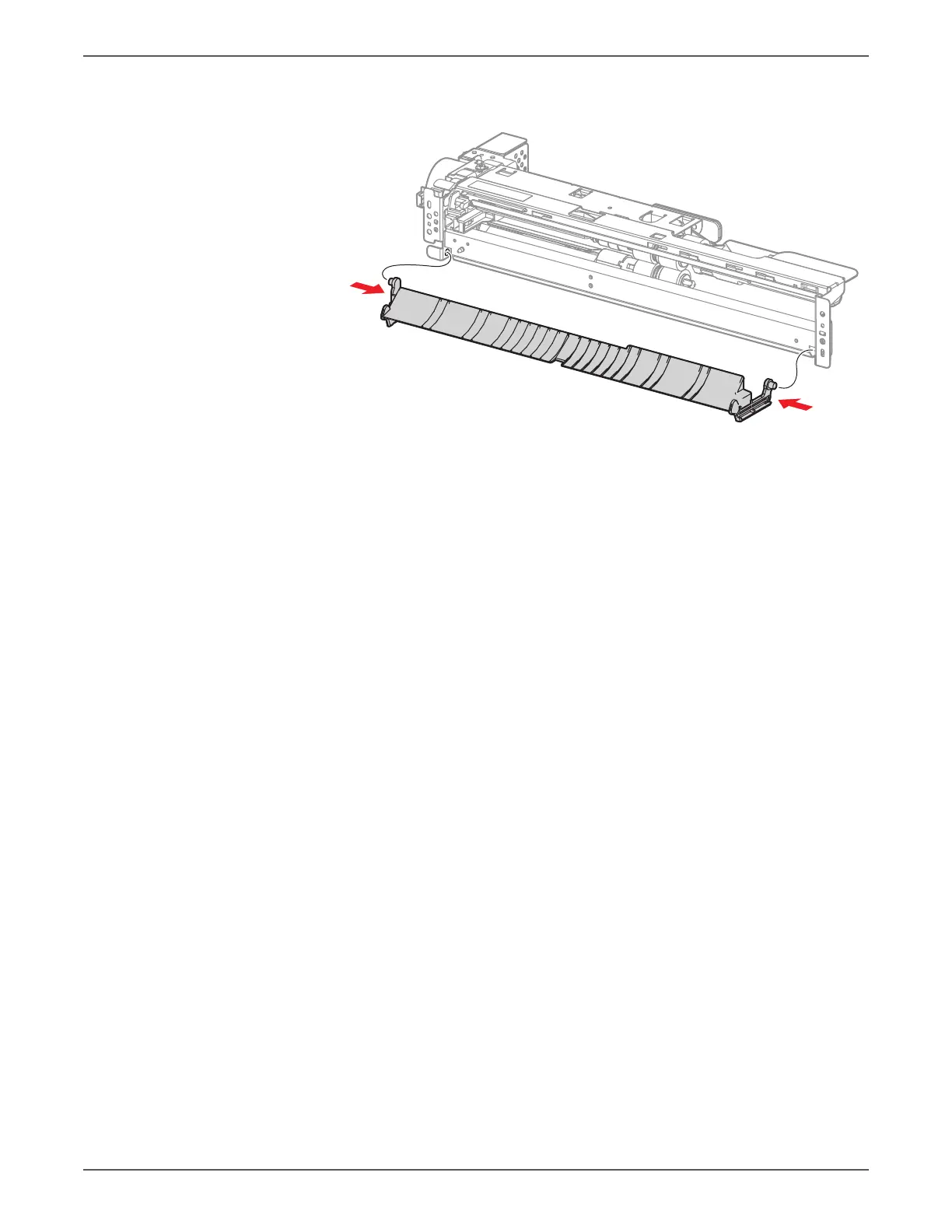

6. While pressing the right and left Arms on the Feed Out Chute, remove the boss

from the installation hole to remove the Feed Out Chute.

s7500-155
