Xerox PHASER 7500 - REP 14.5 Duplex Chute Assembly

8-150 Phaser 7500 Printer Service Manual
Service Parts Disassembly
REP 14.5 Duplex Chute Assembly
PL14.3.5

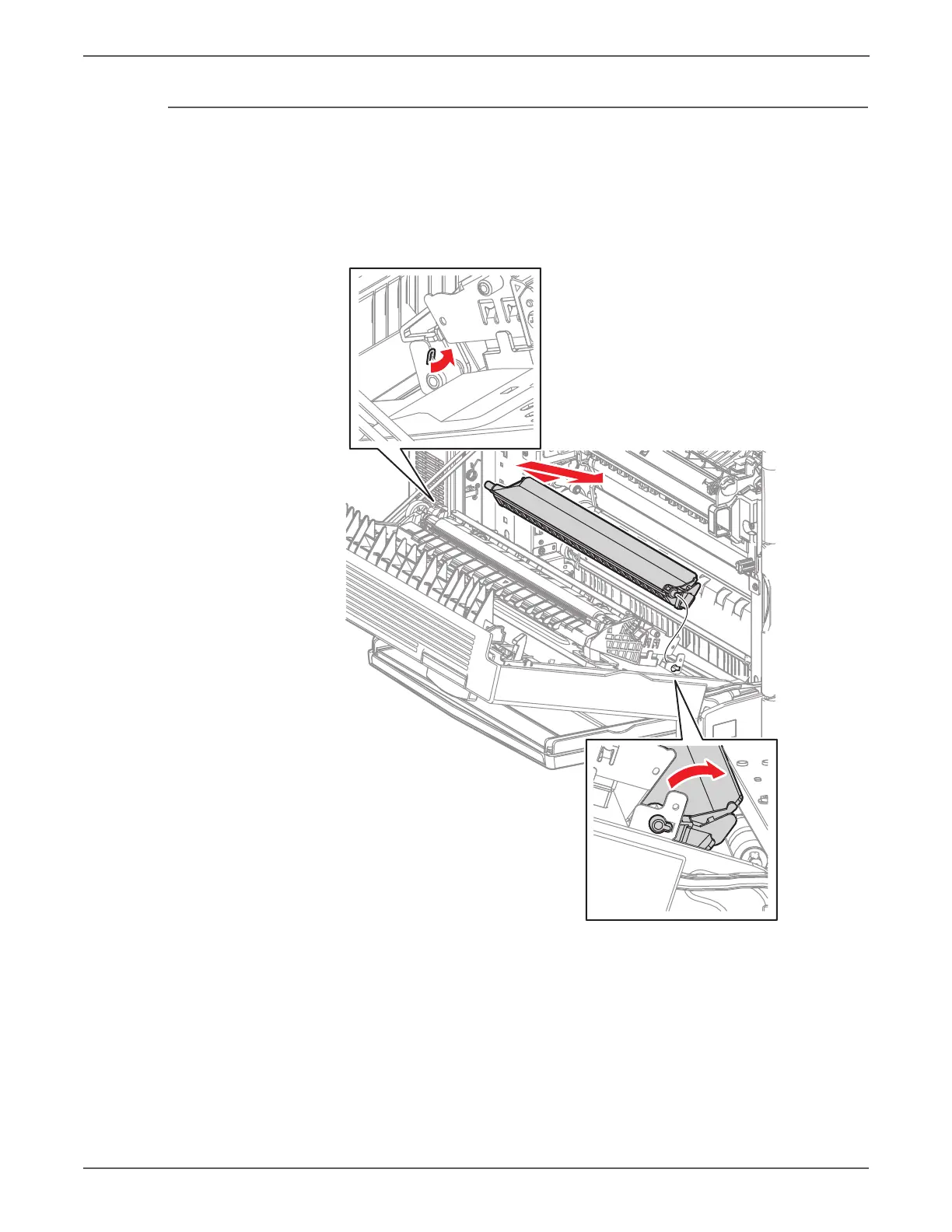

1. Unhook the spring at the rear of the Duplex Chute Assembly.
2. Unscrew 1 screw (silver, 8 mm) at the front of the Duplex Chute Assembly.
3. Rotate the Duplex Chute Assembly, align the boss at its front to the notch,
and remove the Duplex Chute Assembly.
s7500-213
