8-108 Phaser 7500 Printer Service Manual
Service Parts Disassembly
REP 10.20 Top Cover/ Foot Cover
PL10.13.2/ PL10.13.3
1. Remove the Tray Assembly from the Tray Module (3T).
2. Remove 2 screws (silver, Tapped, 8mm) that secure the Top Cover to the Tray
Module (3T).
3. Remove the Top Cover from the Tray Module (3T).
4. Remove 2 screws (silver, Tapped, 8mm) that secure the Foot Cover to the Tray
Module (3T).
5. Remove the Foot Cover from the Tray Module (3T).

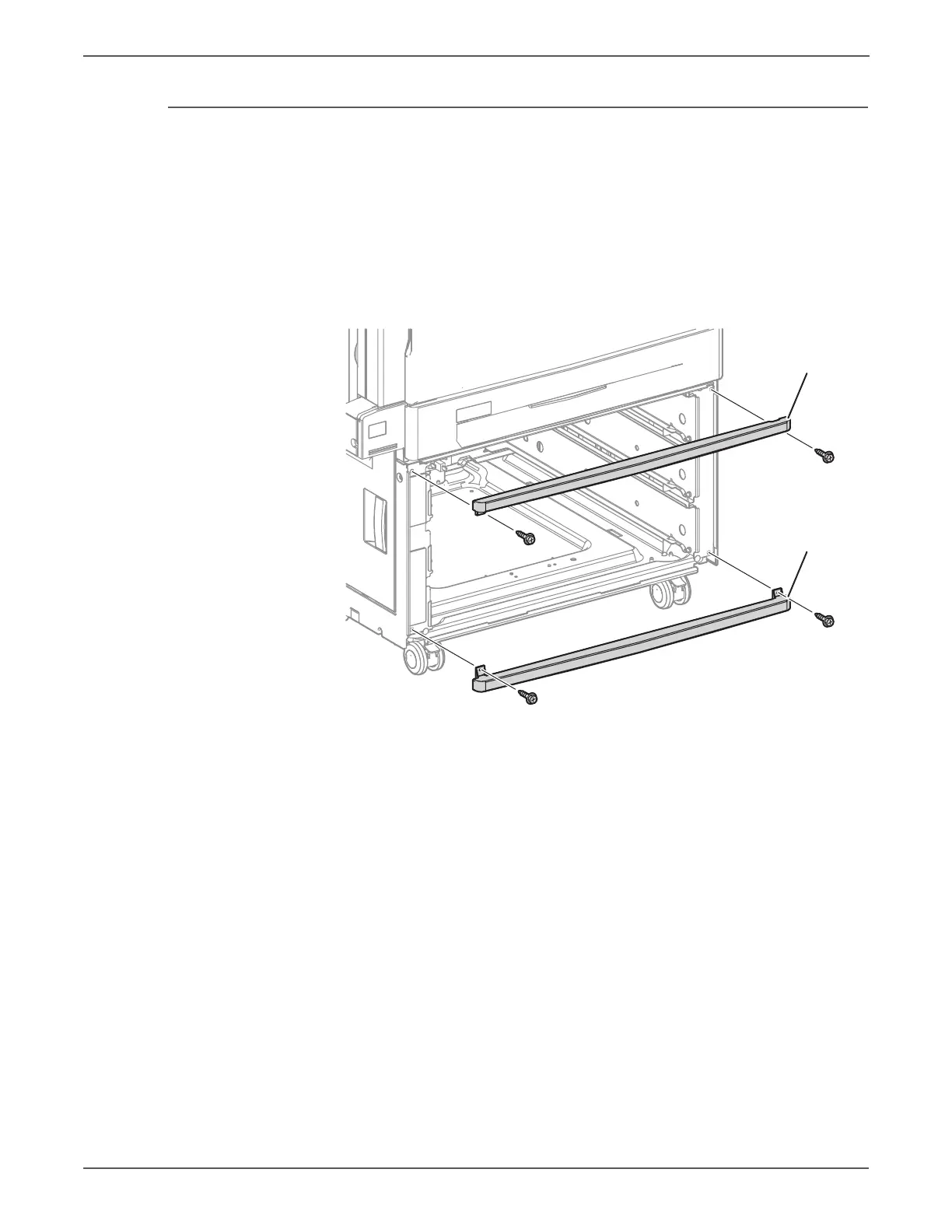

s7500-172
Foot Cover
Top Cover
To Next Page
