Xerox PHASER 7500 Service Manual

Phaser 7500 Printer Service Manual 8-29
Service Parts Disassembly

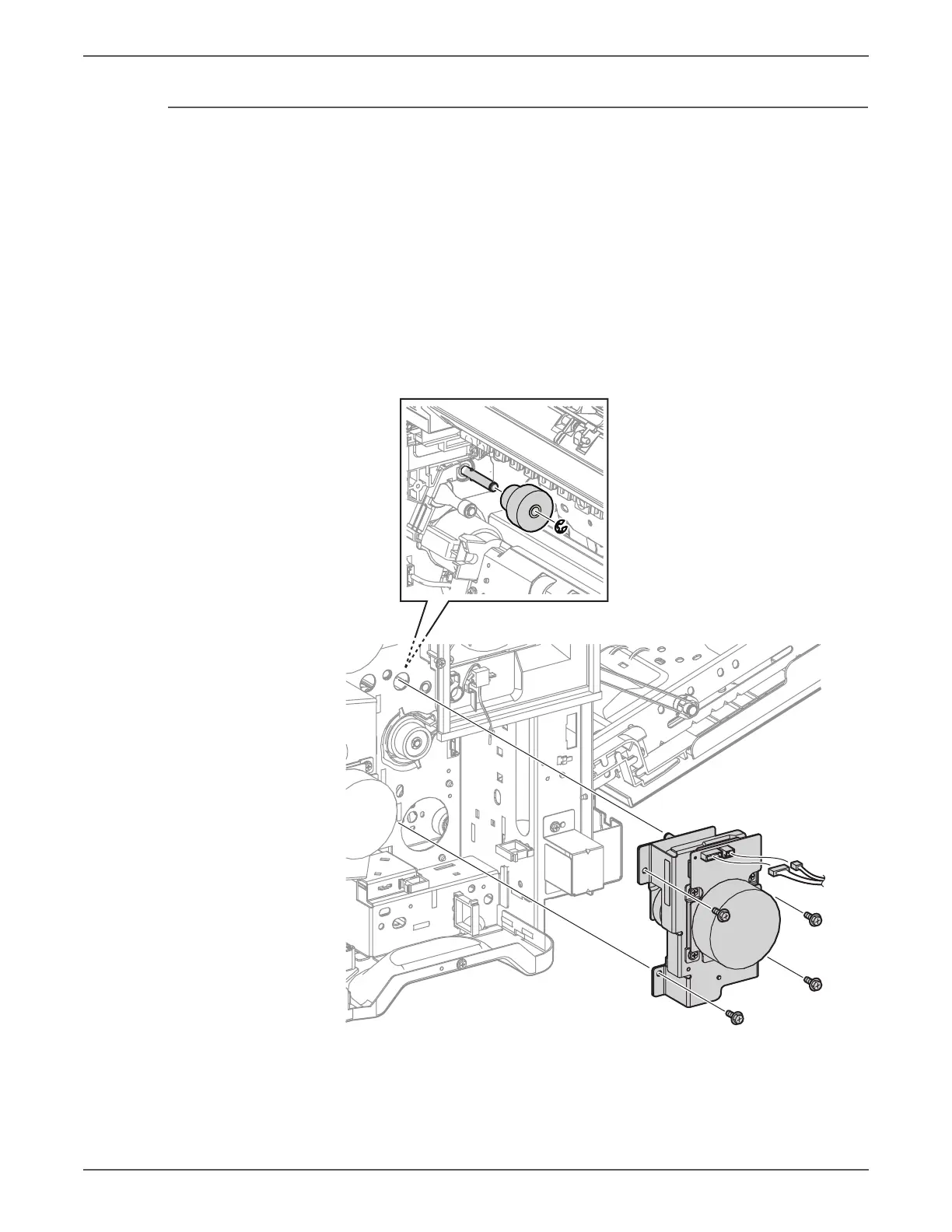

REP 3.4 Main Drive Assembly
PL3.2.1
1. Remove the Top Rear Cover and the Rear Cover (REP 19.6, page 8-217).
2. Remove the Right Cover (REP 19.8, page 8-219).
3. Remove the PWB Chassis Unit (REP 18.10, page 8-197).
4. Remove the IBT Belt Unit (REP 6.2, page 8-58).
5. Remove the Takeaway Clutch (REP 15.1, page 8-172).
6. Disconnect the 2 wiring harness connectors that are connected to the Main
Drive Assembly.
7. Remove the E-ring that secures the Gear and remove the Gear.
8. Remove 4 screws (silver, 8mm) that secure the Main Drive Assembly to the
printer and remove the Main Drive Assembly.
s7500-084

Xerox PHASER 7500 Specifications

General

Max Print Resolution	1200 x 1200 dpi
Monthly Duty Cycle	150, 000 pages
Standard Paper Capacity	550 sheets
Duplex Printing	Optional
Standard Memory	256 MB
Network Connectivity	10/100/1000Base-T Ethernet
Supported Operating Systems	Windows, Mac OS, Linux
Max Paper Capacity	2, 100 sheets
Connectivity	USB 2.0, Ethernet
PDL	PostScript 3, PCL 6, PDF
Print Speed	Up to 35 ppm
