Xerox PHASER 7500 Service Manual

8-120 Phaser 7500 Printer Service Manual
Service Parts Disassembly
REP 11.10 500-Sheet Feeder PWB
PL11.5.4
1. Remove the Rear Cover-STM (REP 11.17, page 8-127).
2. Disconnect the 4 wiring harness connectors (P/J541, P/J548, P/J550, and P/
J551) that are connected to the STM PWB.

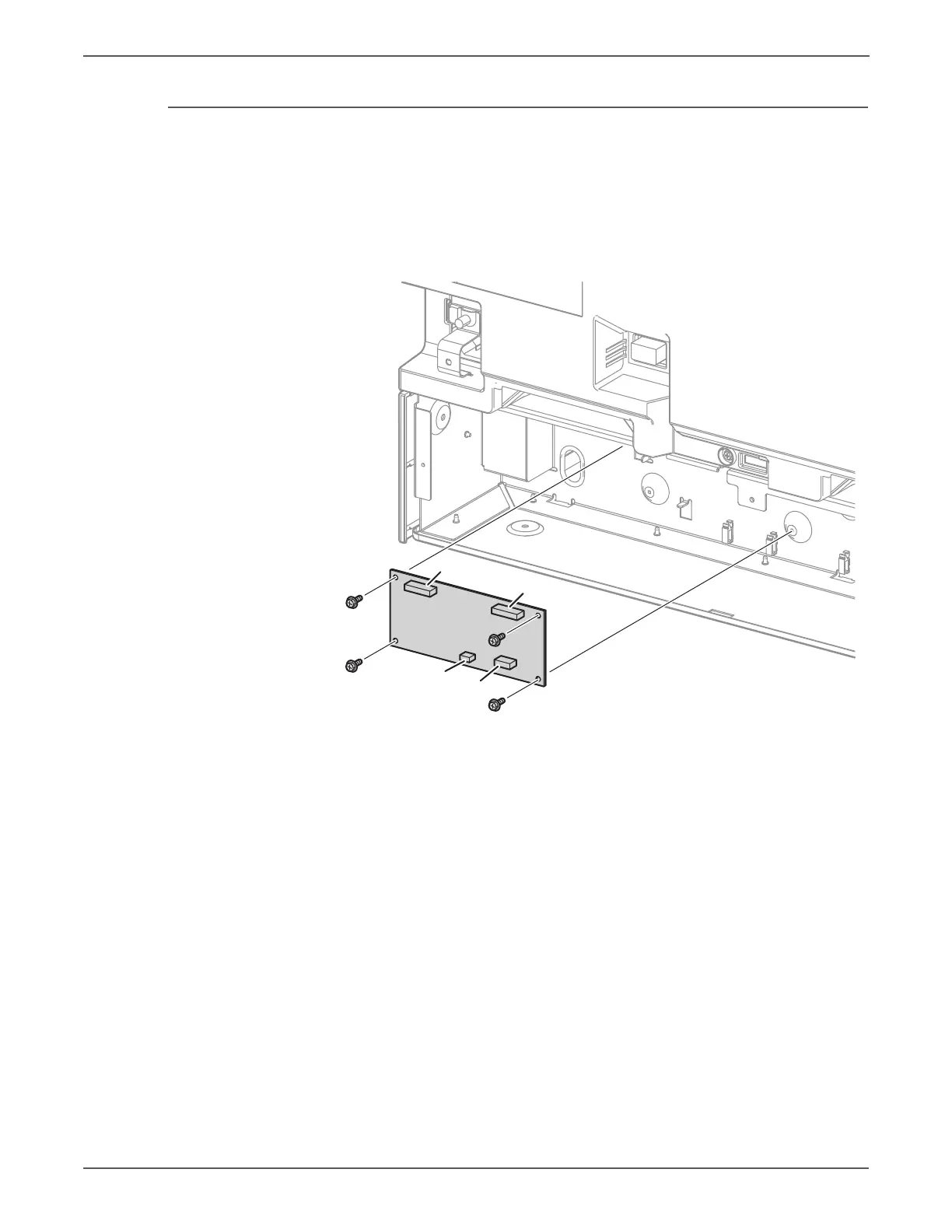

3. Remove 4 screws (silver, 8mm) that secure the STM PWB to the Tray Module
(1T) and remove the STM PWB.
s7500-181
P/J548
P/J541
P/J551
P/J550
