Xerox PHASER 7500 Service Manual

8-62 Phaser 7500 Printer Service Manual
Service Parts Disassembly
REP 6.2.5 IBT Belt
Caution
Be sure to hold the IBT Belt Assembly while removing and installing the
Handle to prevent the IBT Belt Assembly from falling and breaking the IBT
frame.
1. Remove the KL Clips (x2) from the Handle at the rear of the IBT Belt Unit and
remove the Handle.

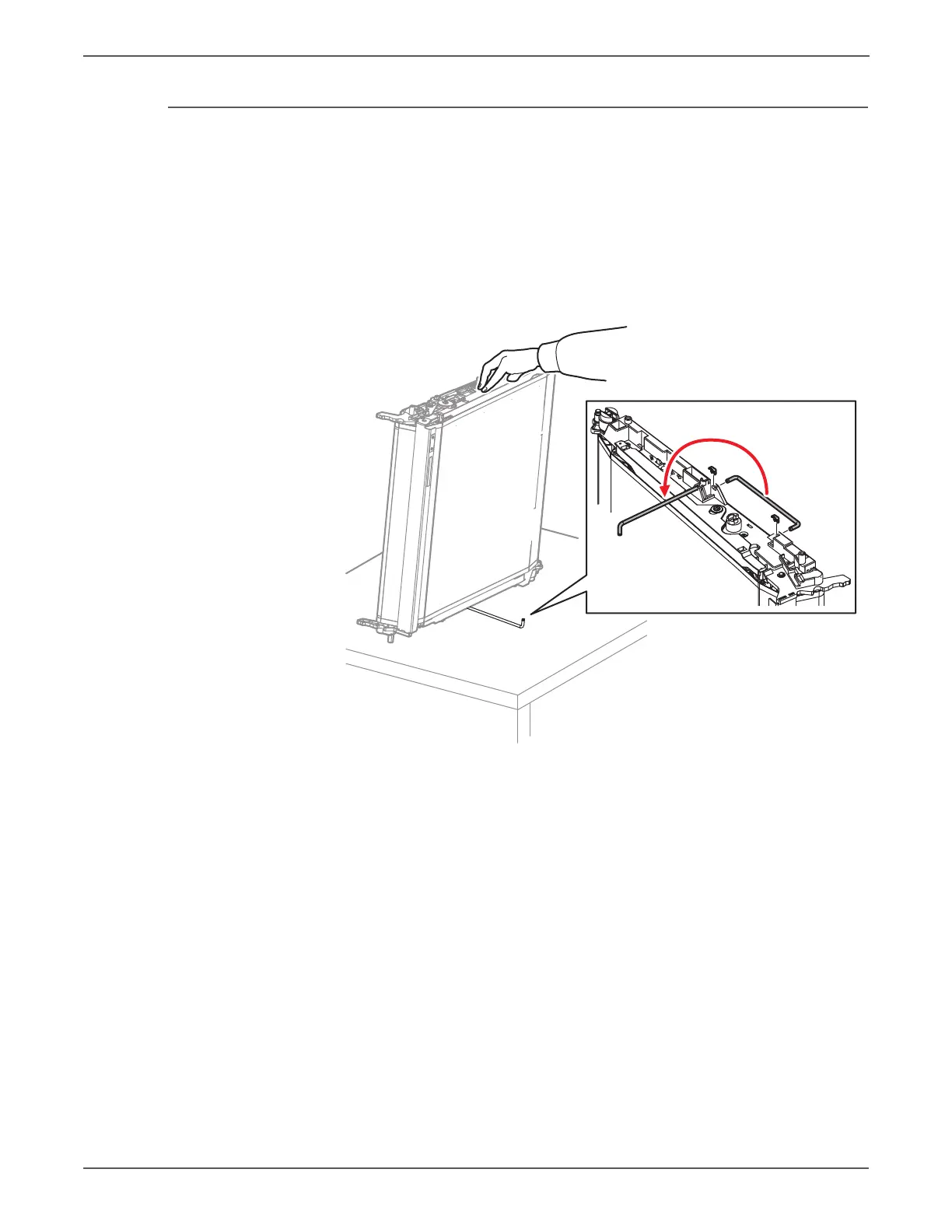

2. Install the removed Handle in the position shown in the illustration, and place
the IBT Belt Unit upright with the Handle at the bottom.
s7500-114
