Xerox PHASER 7500 Service Manual

Phaser 7500 Printer Service Manual 8-63
Service Parts Disassembly

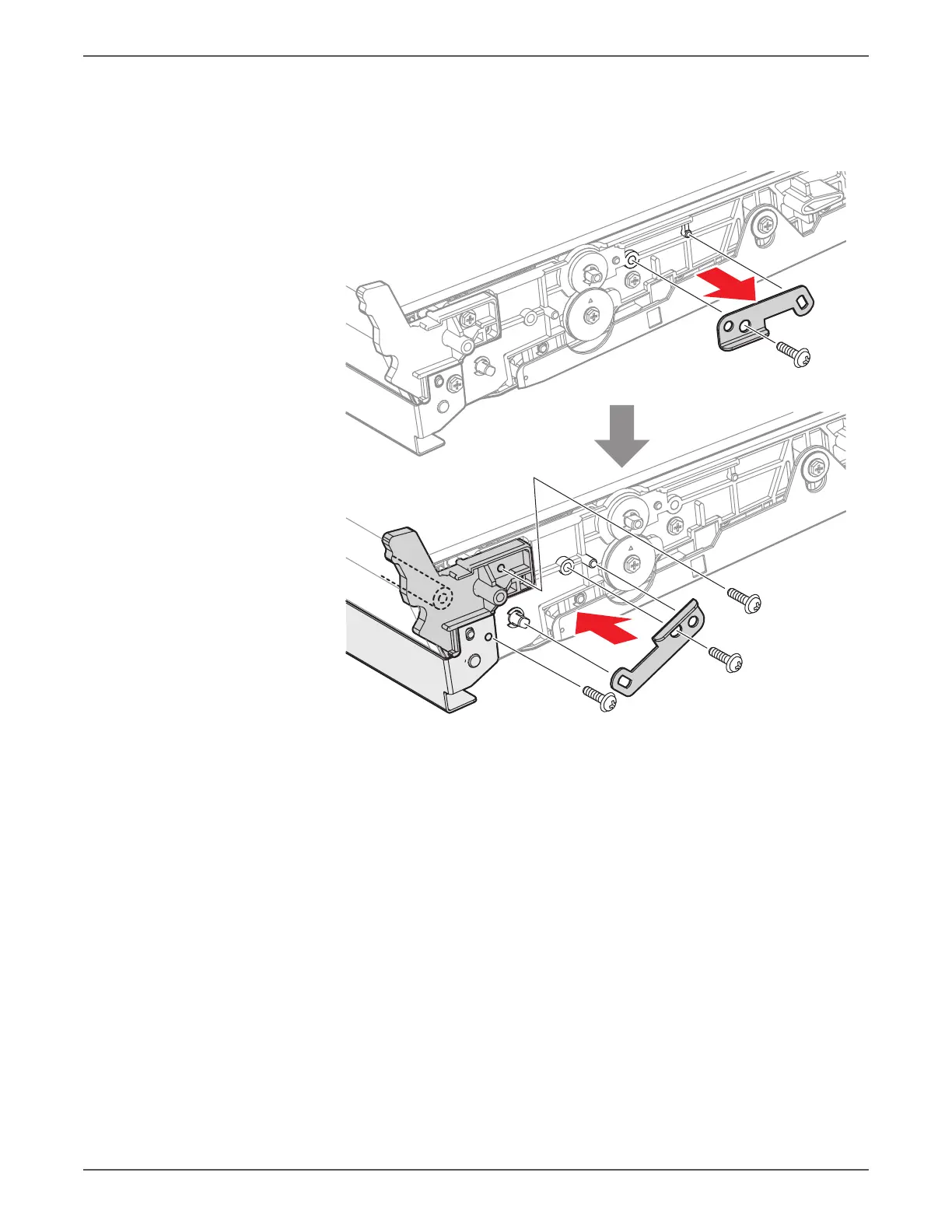

3. Remove 1 screw (silver, Tapped, 8mm) that secures the Lock Tension Plate to
the IBT Belt Unit and remove the Lock Tension Plate.
4. Install the Lock Tension Plate at the given position on the IBT Belt Unit by
reusing the screw that was removed in the previous step.
5. Remove the Inlet Chute (PL6.3.2)
6. Remove 1 screw that secures the BUR Front Frame (PL6.3.3).
7. Remove the BUR Front Frame.
8. Remove the Backup Roller Assembly (PL6.3.4).
9. Remove the IBT Belt (PL6.3.6).
10. Install the new IBT Belt on the assembly. Make sure the reflective patch
(PL6.3.7) is positioned on the rear of the assembly.
11. Follow steps 8 to 1 in reverse order.
s7500-498

Xerox PHASER 7500 Specifications

General

Max Print Resolution	1200 x 1200 dpi
Monthly Duty Cycle	150, 000 pages
Standard Paper Capacity	550 sheets
Duplex Printing	Optional
Standard Memory	256 MB
Network Connectivity	10/100/1000Base-T Ethernet
Supported Operating Systems	Windows, Mac OS, Linux
Max Paper Capacity	2, 100 sheets
Connectivity	USB 2.0, Ethernet
PDL	PostScript 3, PCL 6, PDF
Print Speed	Up to 35 ppm
