Xerox PHASER 7500 Service Manual

2-42 Phaser 7500 Printer Service Manual
Theory of Operation
Tray 1 (MPT)
Tray 1 Size Sensor (PL13.5.4)
The Tray 1 Size Sensor detects the paper width by the position of the Tray 1
guides. As the position of the guide changes, the output voltage also changes due
to the variable resistance.
The paper width is determined by the output voltage.
Tray 1 No Paper Sensor (PL13.4.17)
The Tray 1 No Paper Sensor detects whether paper exists in Tray 1 by changes in
the Actuator.
Note
No paper: Sensor blocked
Tray 1 Feed/ Nudger Motor (PL13.2.18)
The Tray 1 Feed/ Nudger Motor raises/lowers the Nudger Roll when in forward
rotation (CW direction), and drives the Feed Roll and the Nudger Roll when in
reverse rotation (CCW direction).

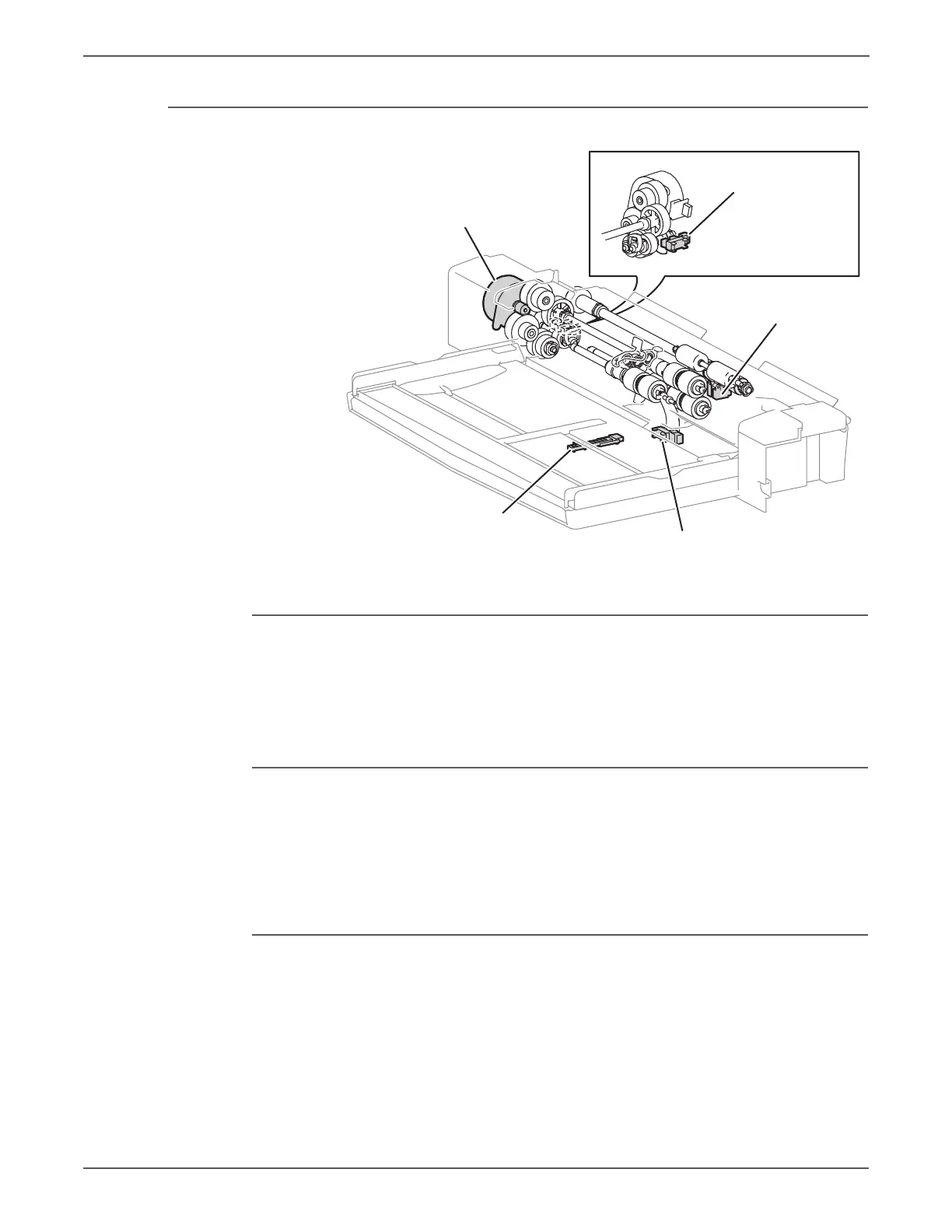

s7500-376
MPT (Tray 1)
Paper Size Sensor
MPT (Tray 1) No Paper Sensor
MPT (Tray 1)
Feed / Nudger Motor
MPT (Tray 1) Nudger
Position Sensor
MPT (Tray 1)
Feed Out Sensor

Xerox PHASER 7500 Specifications

General

Max Print Resolution	1200 x 1200 dpi
Monthly Duty Cycle	150, 000 pages
Standard Paper Capacity	550 sheets
Duplex Printing	Optional
Standard Memory	256 MB
Network Connectivity	10/100/1000Base-T Ethernet
Supported Operating Systems	Windows, Mac OS, Linux
Max Paper Capacity	2, 100 sheets
Connectivity	USB 2.0, Ethernet
PDL	PostScript 3, PCL 6, PDF
Print Speed	Up to 35 ppm
