Xerox PHASER 7500 - Transfer; REP 6.1 IBT Belt Cleaner Assembly

Phaser 7500 Printer Service Manual 8-57
Service Parts Disassembly
Transfer
REP 6.1 IBT Belt Cleaner Assembly
PL6.1.4

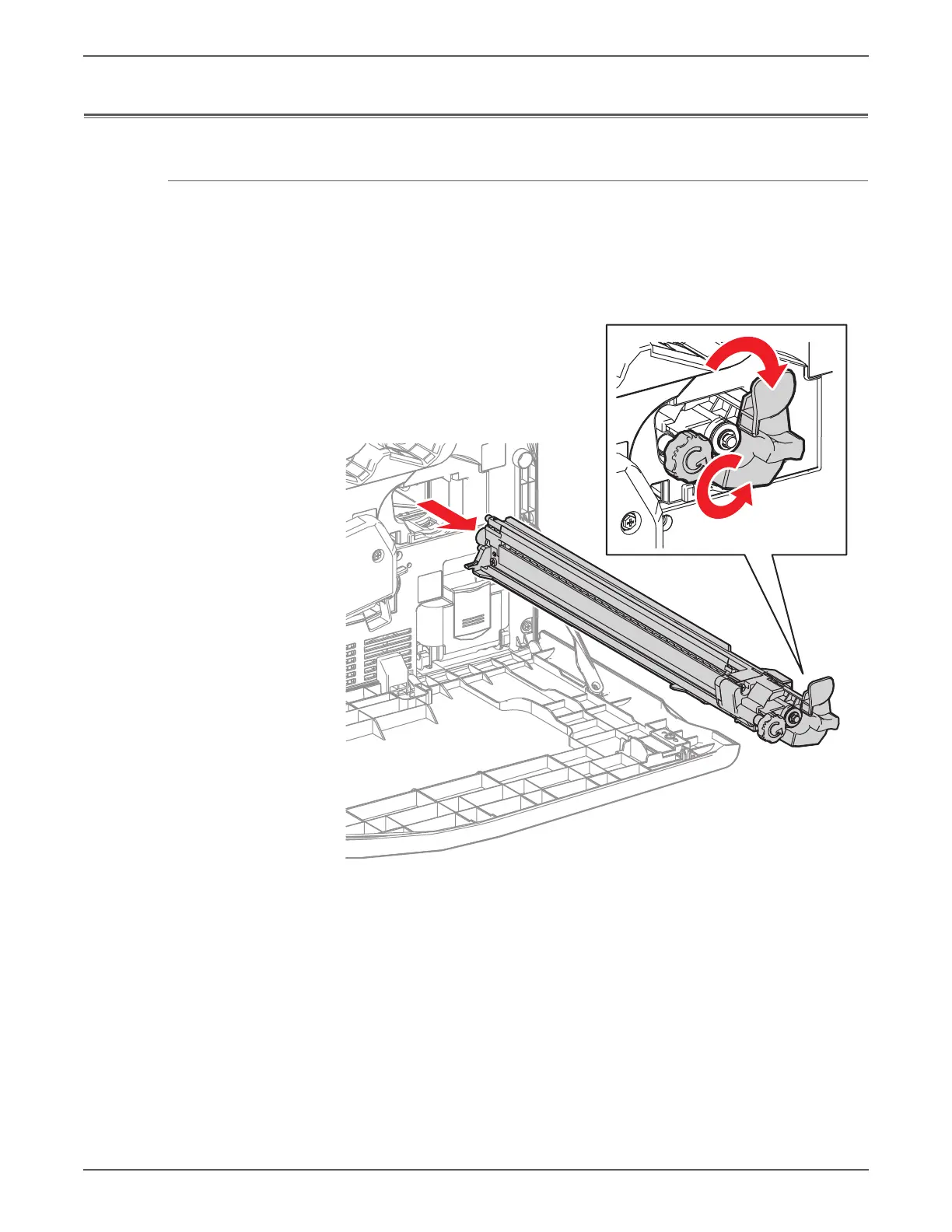

1. Turn the Lever of the IBT Belt Cleaner Assembly clockwise.
2. Turn the Knob counterclock-wise until it is free.
3. Pull the IBT Belt Cleaner Assembly towards you and remove it.
Note
When reinstalling the IBT Belt Cleaner Assembly, turn the knob clockwise until
it stops.
s7500-109
