Xerox PHASER 7500 - REP 18.10 PWB Chassis Unit

Phaser 7500 Printer Service Manual 8-197
Service Parts Disassembly
REP 18.10 PWB Chassis Unit
PL18.2.7
Caution
PWB’s can be damaged by an electrostatic discharge. Observe all ESD
procedures to avoid component damage.
1. Remove the Top Rear Cover and the Rear Cover (REP 19.6, page 8-217).
2. Remove the Right Cover (REP 19.8, page 8-219).

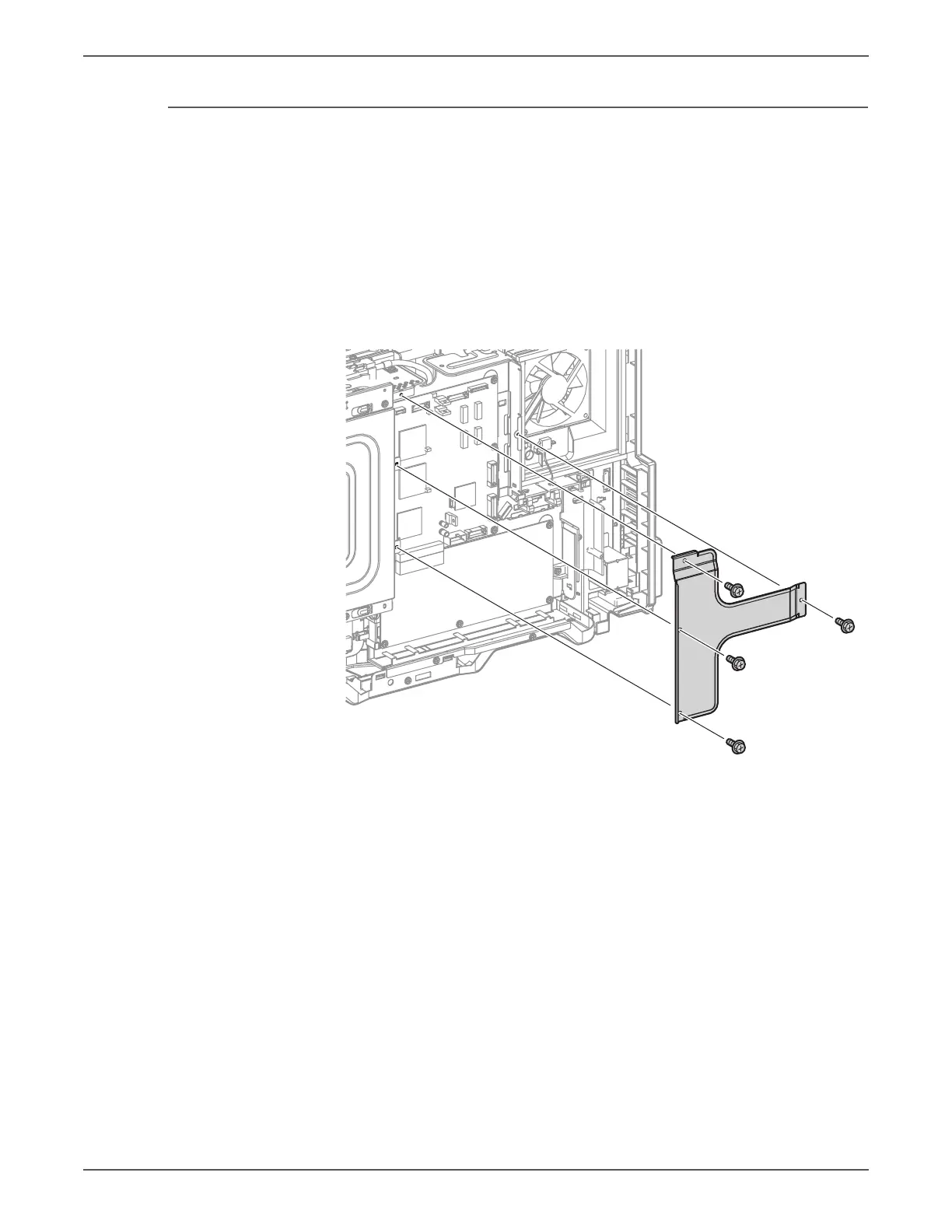

3. Remove 4 screws (silver, 6mm) that secure the MCU PWB Cover and remove
the MCU PWB Cover.
s7500-254
