Xerox PHASER 7500 - REP 10.8 Clutch Assy. (25 T); One-Way Clutch; Friction Clutch

8-96 Phaser 7500 Printer Service Manual
Service Parts Disassembly
REP 10.8 Clutch Assy. (25T)/ One-Way Clutch/ Friction Clutch
PL10.4.14/ PL10.4.15/ PL10.4.19
1. Remove the Tray Assembly from the 1500-Sheet Feeder.
2. Remove the Feeder Assembly (REP 10.1, page 8-90).
3. Remove the Feed Roll/ Retard Roll/ Nudger Roll (REP 10.7, page 8-95).
4. Pull off each Clutch to remove it.

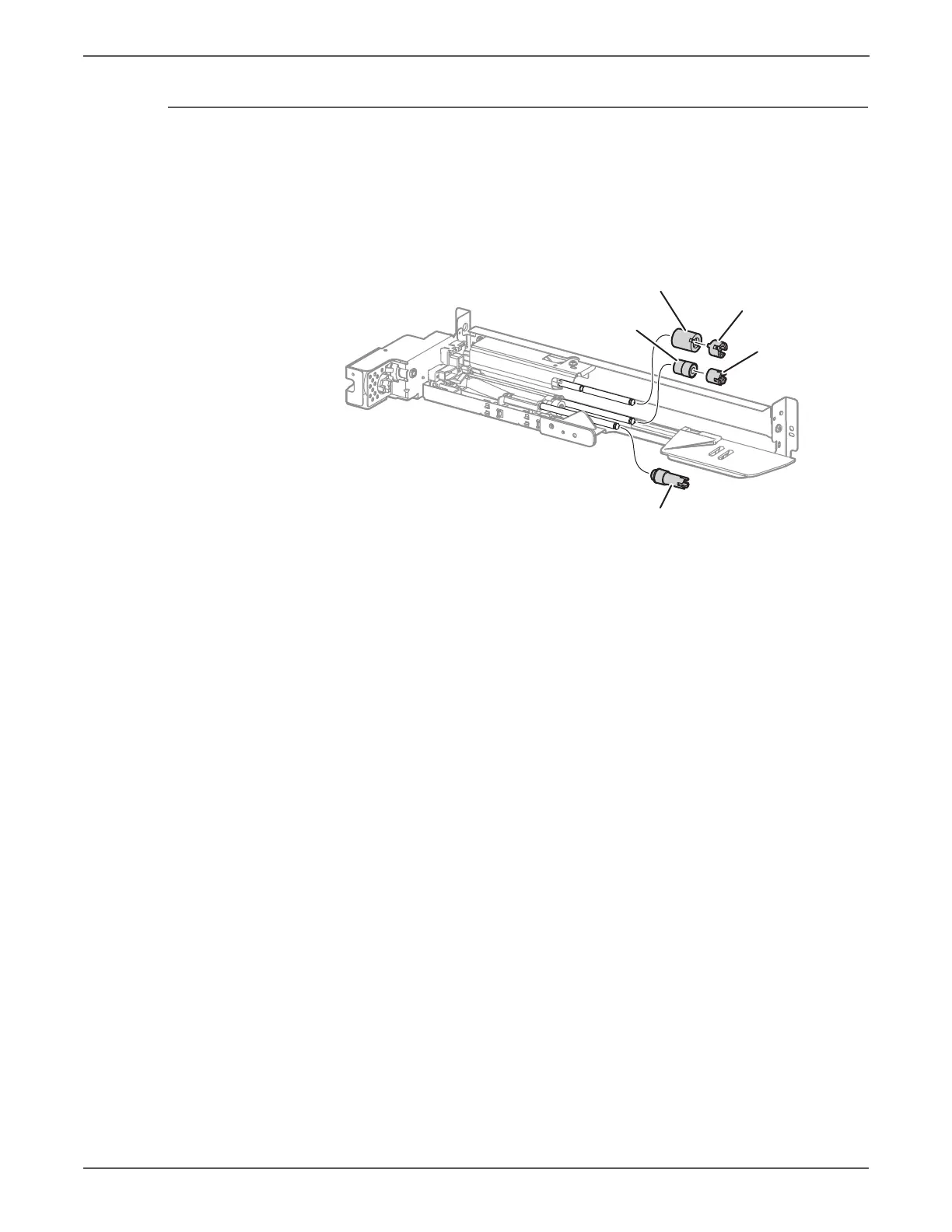

s7500-151
Gear 25
Friction Clutch
One Way Clutch
Clutch Assy (25T)
Spacer
