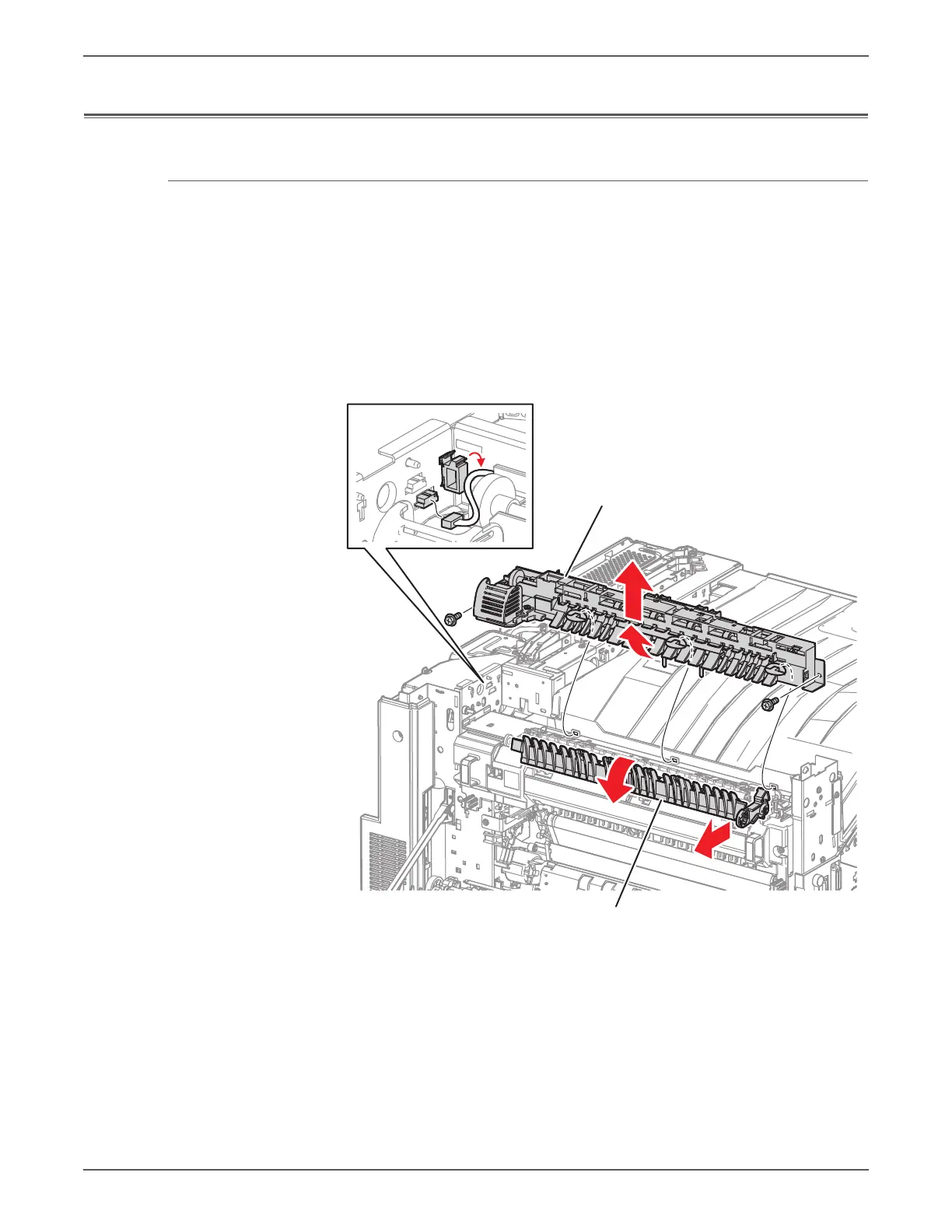

REP 17.1 Exit Assembly
PL17.1.1
1. Remove the Exit Cover (REP 19.5, page 8-216).
2. Open the Chute on the Fuser.
3. Release the wiring harness that is connected to the Exit Assembly from the
clamp and disconnect the wiring harness connector.
4. Remove 2 screws (silver, 8mm) that secure the Exit Assembly to the printer.
5. Raise the left side of the Exit Assembly, release the 3 tabs, and remove the Exit
Assembly.
s7500-241
Chute
Exit Assembly
