Xerox PHASER 7500 - Development; REP 5.1 Toner Dispenser Motor Assembly

Phaser 7500 Printer Service Manual 8-43
Service Parts Disassembly
Development
REP 5.1 Toner Dispenser Motor Assembly
PL5.1.5
1. Remove the Top Cover Assembly (REP 19.2, page 8-211).
2. Remove the Right Cover (REP 19.8, page 8-219).
3. Remove the PWB Chassis Unit (REP 18.10, page 8-197).
4. Remove the HVPS (1st/ 2nd/ DTS). (REP 6.4, page 8-65).
5. Remove the Conductor Housing Assembly (REP 6.3, page 8-64).

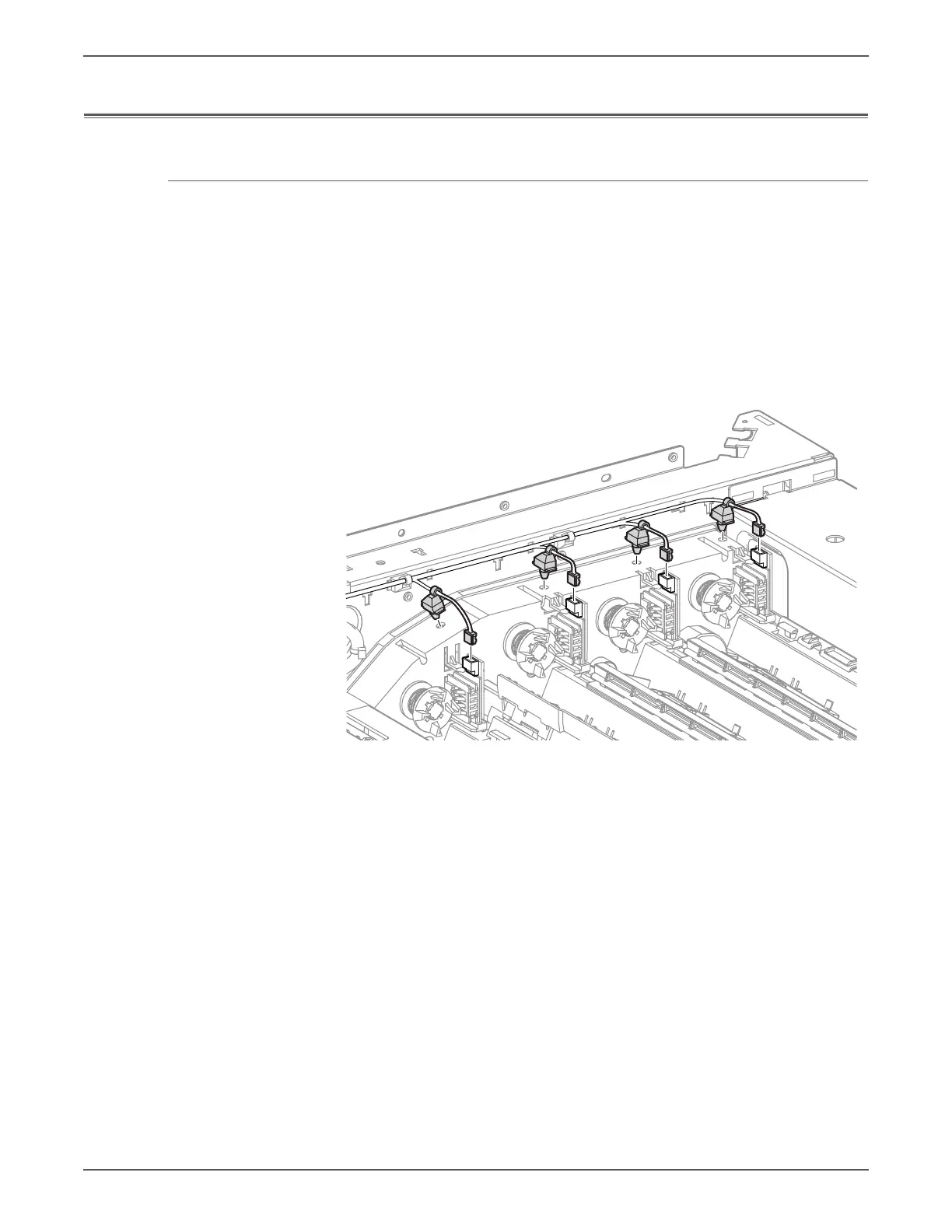

6. Squeeze and release the 4 clamps and disconnect the 4 wiring harness
connectors.
s7500-097
