8-42 Phaser 7500 Printer Service Manual
Service Parts Disassembly
9. Disconnect the wiring harness connector that is connected from the HV Fan.
10. Release the latch, and slide the HV Fan from the Duct Assembly and remove
the HV Fan.
Replacement Note
Be sure Tray 2 is slightly pulled out, if it has not been removed, in order to sit
the HV Fan Duct in place.

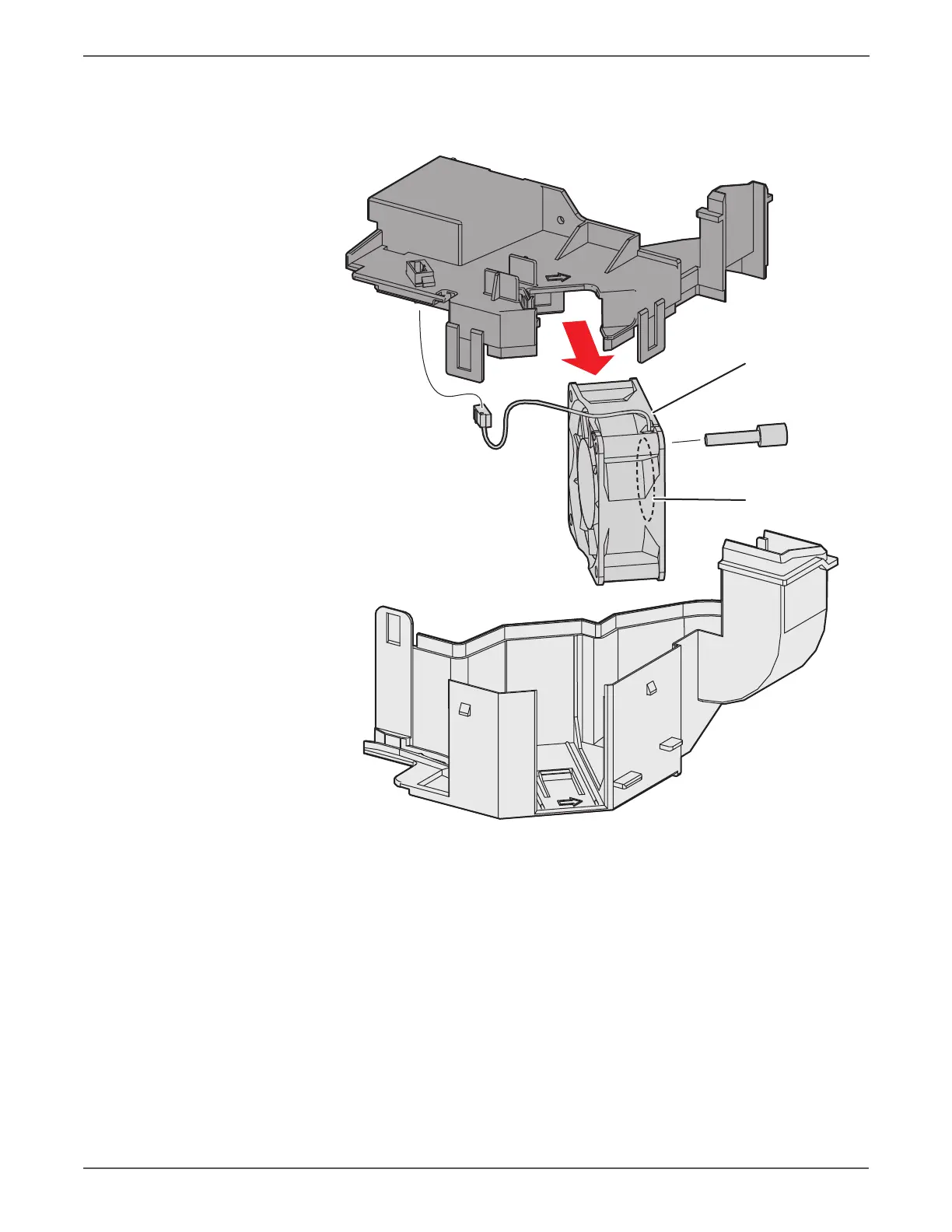

s7500-096
HV Fan
Label
