Phaser 7500 Printer Service Manual 8-41
Service Parts Disassembly

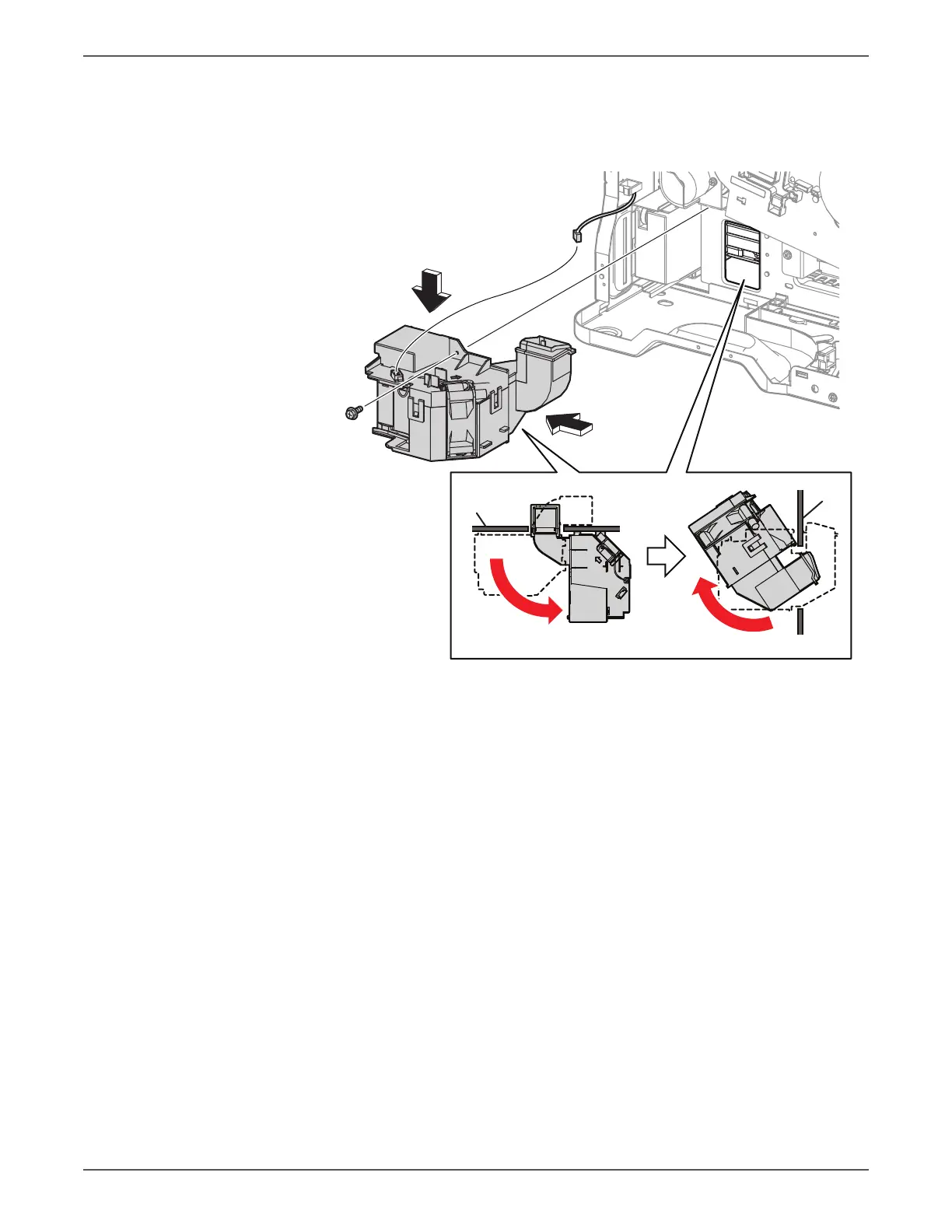

7. Remove 1 screw (silver, 6mm) that secures the Duct Assembly.
8. Turn the Duct Assembly 90° sideways while pulling it gently towards you and
pull out the Duct Assembly outlet from the Frame hole, then turn the Duct
Assembly upwards and remove the Duct Assembly.
s7500-095
A
B
AB
Frame
Frame
View
View
