Xerox PHASER 7500 Service Manual

8-166 Phaser 7500 Printer Service Manual
Service Parts Disassembly
REP 14.16 Duplex Wait Sensor/ Actuator/ Spring
PL14.6.8, PL14.6.9, PL14.6.10
1. Remove the Duplex Assembly (REP 14.12, page 8-161).

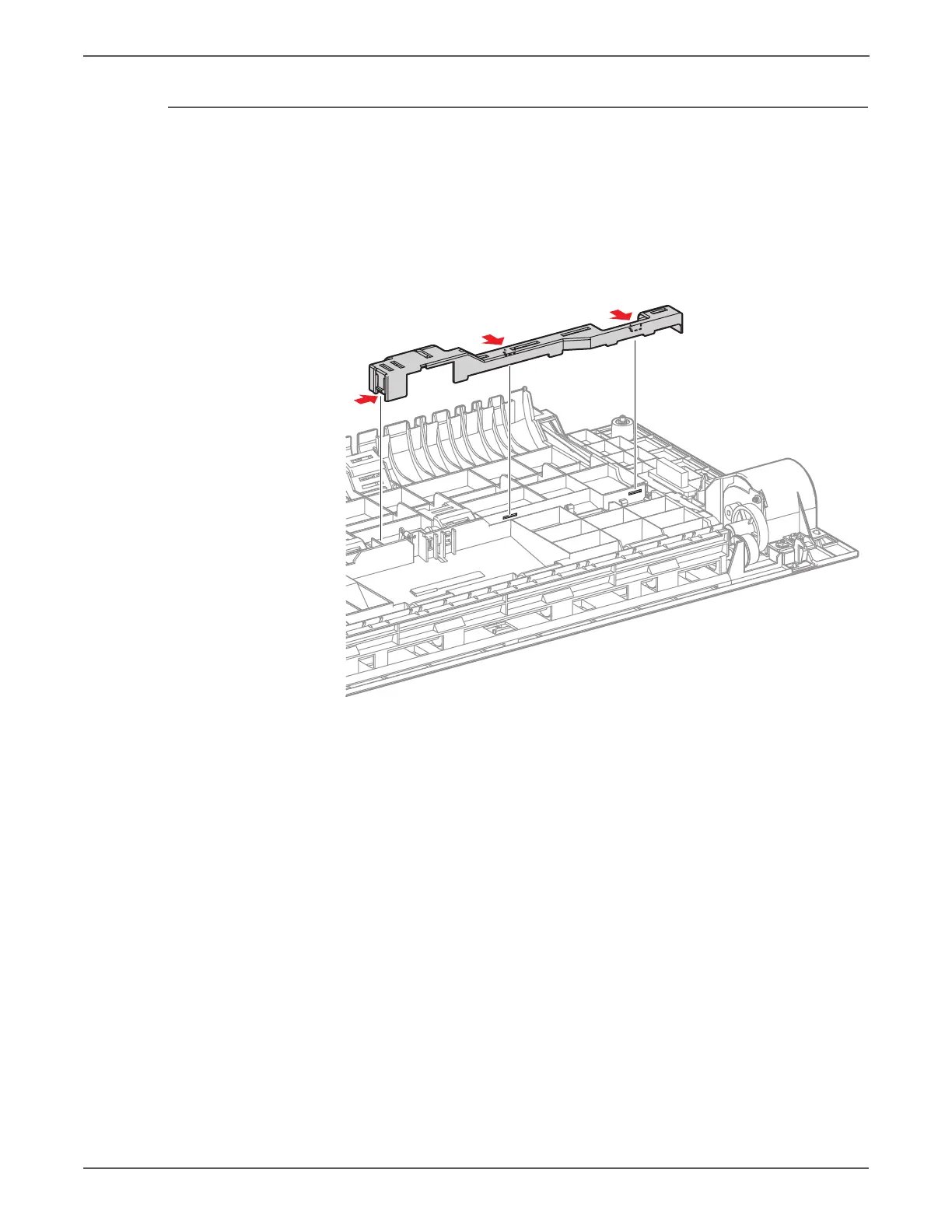

2. Release the 3 hooks that secure the Sensor Cover to the Duplex Assembly and
remove the Sensor Cover.
3. Pull out the Actuator Shaft from the 2 U-shaped grooves and remove the
Actuator.
4. Remove the Spring from the Actuator.
s7500-227

Xerox PHASER 7500 Specifications

General

Max Print Resolution	1200 x 1200 dpi
Monthly Duty Cycle	150, 000 pages
Standard Paper Capacity	550 sheets
Duplex Printing	Optional
Standard Memory	256 MB
Network Connectivity	10/100/1000Base-T Ethernet
Supported Operating Systems	Windows, Mac OS, Linux
Max Paper Capacity	2, 100 sheets
Connectivity	USB 2.0, Ethernet
PDL	PostScript 3, PCL 6, PDF
Print Speed	Up to 35 ppm
