Xerox PHASER 7500 Service Manual

2-68 Phaser 7500 Printer Service Manual
Theory of Operation
Control

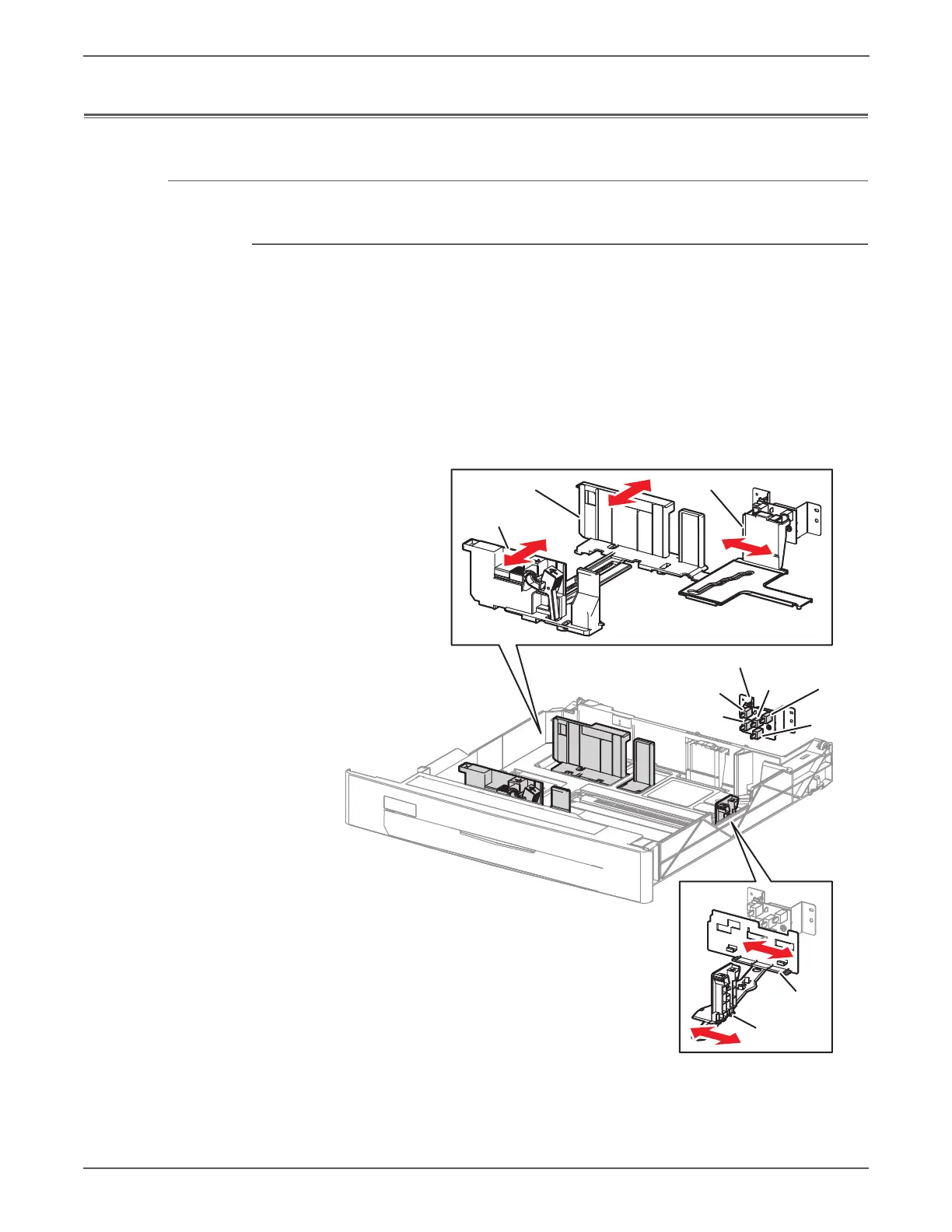

Paper Size Detection
Tray 2
Inserting the Paper Tray causes the Actuator to press on the Tray Paper Size Sensor
Switches at the rear, and the paper size is detected.
Load paper into the Paper Tray and align the Side Guides and End Guide. The End
Actuator and Side Actuator positions change as the guides are moved, which
changes the combination in which the Tray Paper Size Sensor Switches are
pressed. The paper size is determined by the combination of On/Off states of
these Switches.
Optional Trays: Single Tray Module (STM) and Lower Tray Assembly also utilizes
the same paper size detection mechanism.
Side Guide (Front)
Side Guide (Rear)
Side Actuator
s7500-421
Tray Paper Size Sensor
SW1
SW2
SW3
SW4
SW5
End Guide
End Actuator

Xerox PHASER 7500 Specifications

General

Max Print Resolution	1200 x 1200 dpi
Monthly Duty Cycle	150, 000 pages
Standard Paper Capacity	550 sheets
Duplex Printing	Optional
Standard Memory	256 MB
Network Connectivity	10/100/1000Base-T Ethernet
Supported Operating Systems	Windows, Mac OS, Linux
Max Paper Capacity	2, 100 sheets
Connectivity	USB 2.0, Ethernet
PDL	PostScript 3, PCL 6, PDF
Print Speed	Up to 35 ppm
