Phaser 7500 Printer Service Manual 8-117
Service Parts Disassembly
REP 11.7 Feed Roll/ Retard Roll/ Nudger Roll
PL10.4.2/ PL10.4.3/ PL10.4.4

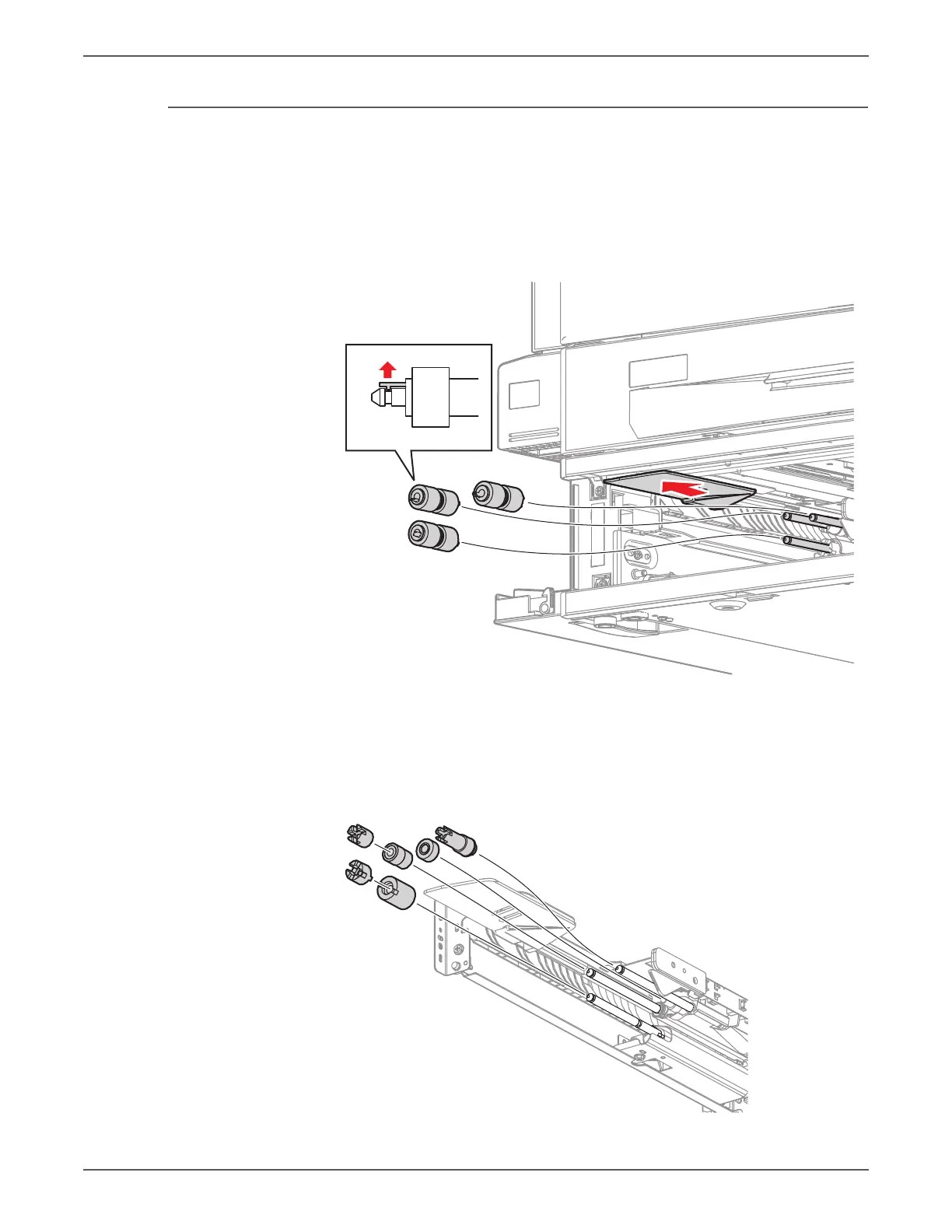

1. Remove the Tray Assembly from the Tray Module (1T).
2. Slide the inner upper (looking from the Tray Assembly insertion opening)
Chute towards you until it stops.
3. Release the hook of the Feed Roll/ Retard Roll/ Nudger Roll, pull out the Roll
from the Shaft and remove it.
Replacement Note
Be sure to reassemble the Rollers as in the illustration. If you find it difficult to
reassemble the parts at the base of each Roll, remove the Feeder Assembly to
perform the reassembly (REP 11.1, page 8-112).
s7500-179
s7500-465
