Xerox PHASER 7500 Service Manual

2-28 Phaser 7500 Printer Service Manual
Theory of Operation

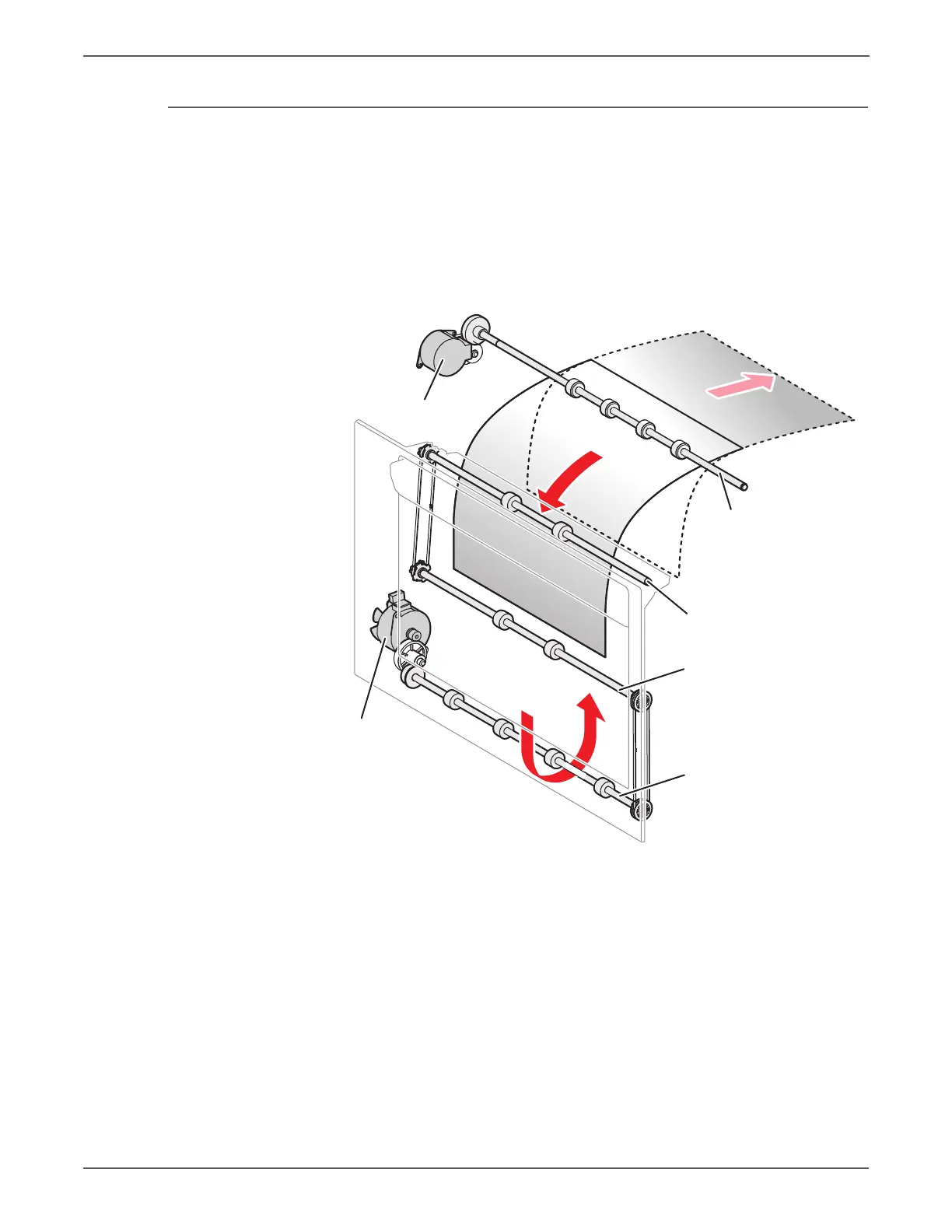

2-Sided Feed
After the paper had passed through the Fuser Assembly and side 1 is completed,
the rotation of the Exit Motor will change from forward rotation to reverse rotation
(CCW direction) at the appropriate time.
This causes the Exit Motor to rotate in the duplex transport direction, which
transports the paper through the top of the Duplex Chute Assembly, and into the
Duplex Assembly.
The Duplex Roller 1, Duplex Roller 2, and Duplex Roller 3 then are rotated from the
drive of the Duplex Motor to transport the paper to the Registration position.
s7500-365
Exit Roll
Exit Motor
Duplex Roller1
Duplex Roller2
Duplex Roller3
Duplex Motor

Xerox PHASER 7500 Specifications

General

Max Print Resolution	1200 x 1200 dpi
Monthly Duty Cycle	150, 000 pages
Standard Paper Capacity	550 sheets
Duplex Printing	Optional
Standard Memory	256 MB
Network Connectivity	10/100/1000Base-T Ethernet
Supported Operating Systems	Windows, Mac OS, Linux
Max Paper Capacity	2, 100 sheets
Connectivity	USB 2.0, Ethernet
PDL	PostScript 3, PCL 6, PDF
Print Speed	Up to 35 ppm
