Xerox PHASER 7500 Service Manual

8-172 Phaser 7500 Printer Service Manual
Service Parts Disassembly
Registration

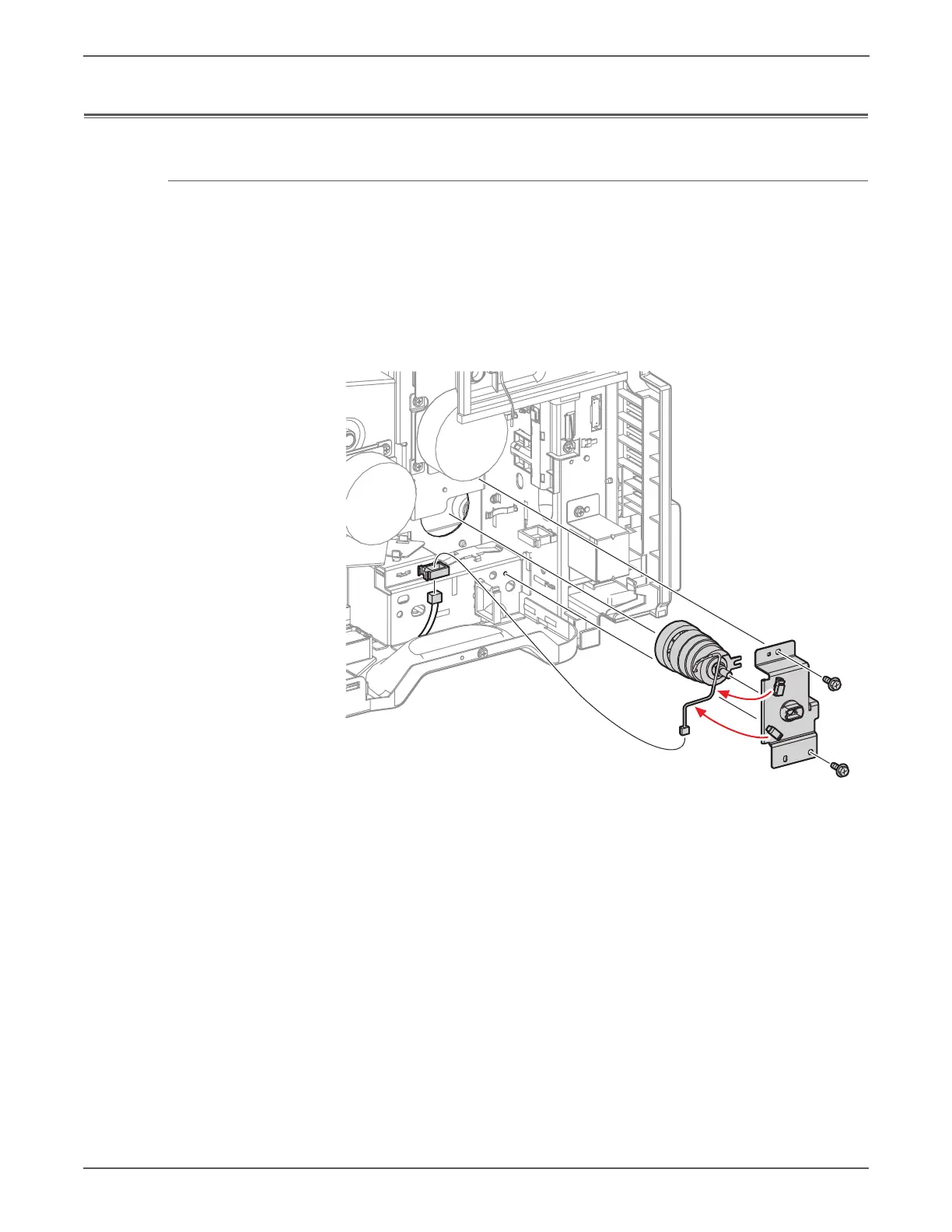

REP 15.1 Takeaway Clutch
PL15.1.1
1. Remove the PWB Chassis Unit (REP 18.10, page 8-197).
2. Release the wiring harness from the 2 clamps on the Bracket of the Takeaway
Clutch and the clamp of the printer and disconnect the wiring harness
connector.
3. Remove 2 screws (silver, 8 mm) that secure the Bracket and remove the
Bracket together with the Takeaway Clutch.
s7500-234
