Phaser 7500 Printer Service Manual 8-173

Service Parts Disassembly

Replacement Note

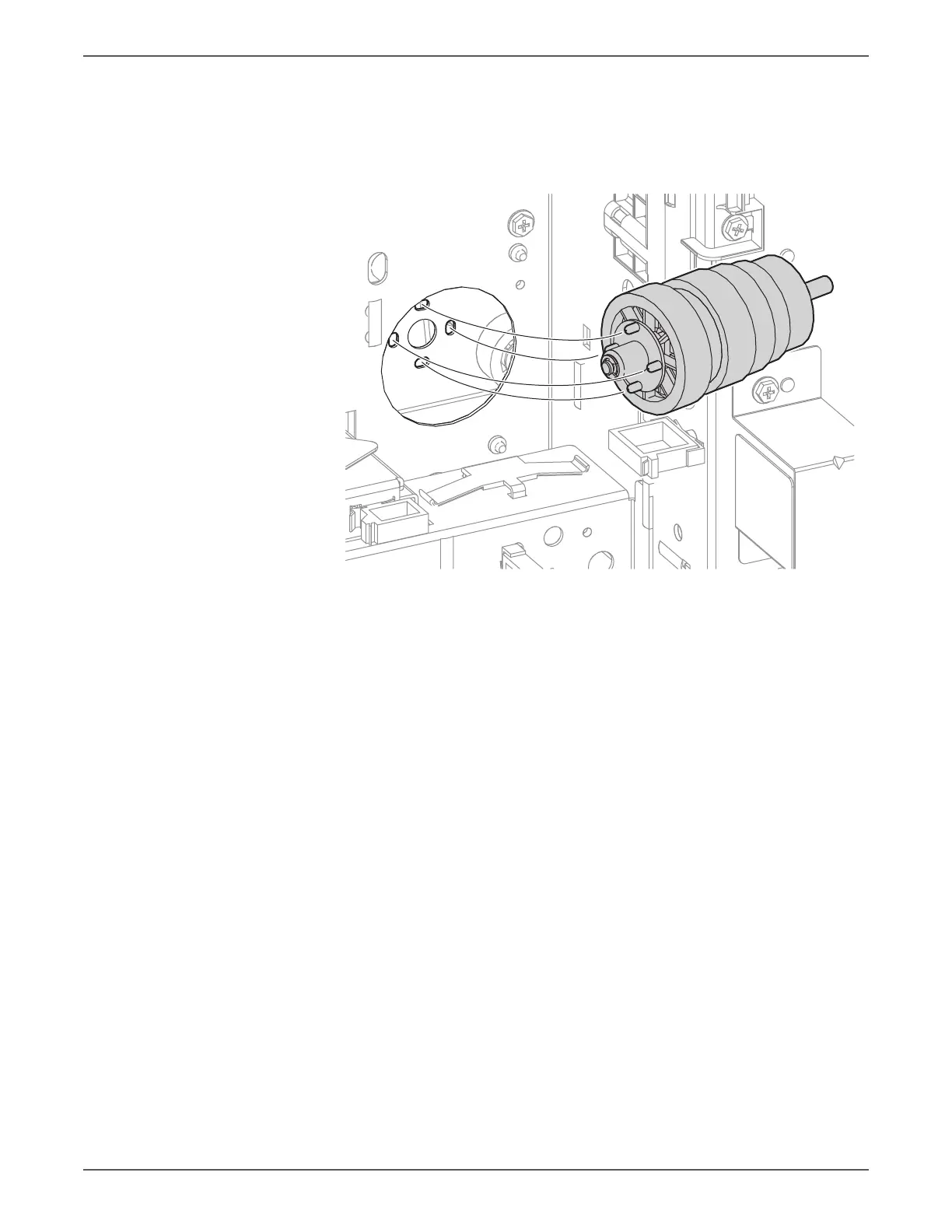

When installing the Takeaway Clutch, be sure to align and insert the 4

protrusions of the Takeaway Clutch into the 4 holes on the printer and the pin

goes through the Clutch fork.

s7500-235
