Xerox PHASER 7500 Service Manual

8-170 Phaser 7500 Printer Service Manual
Service Parts Disassembly

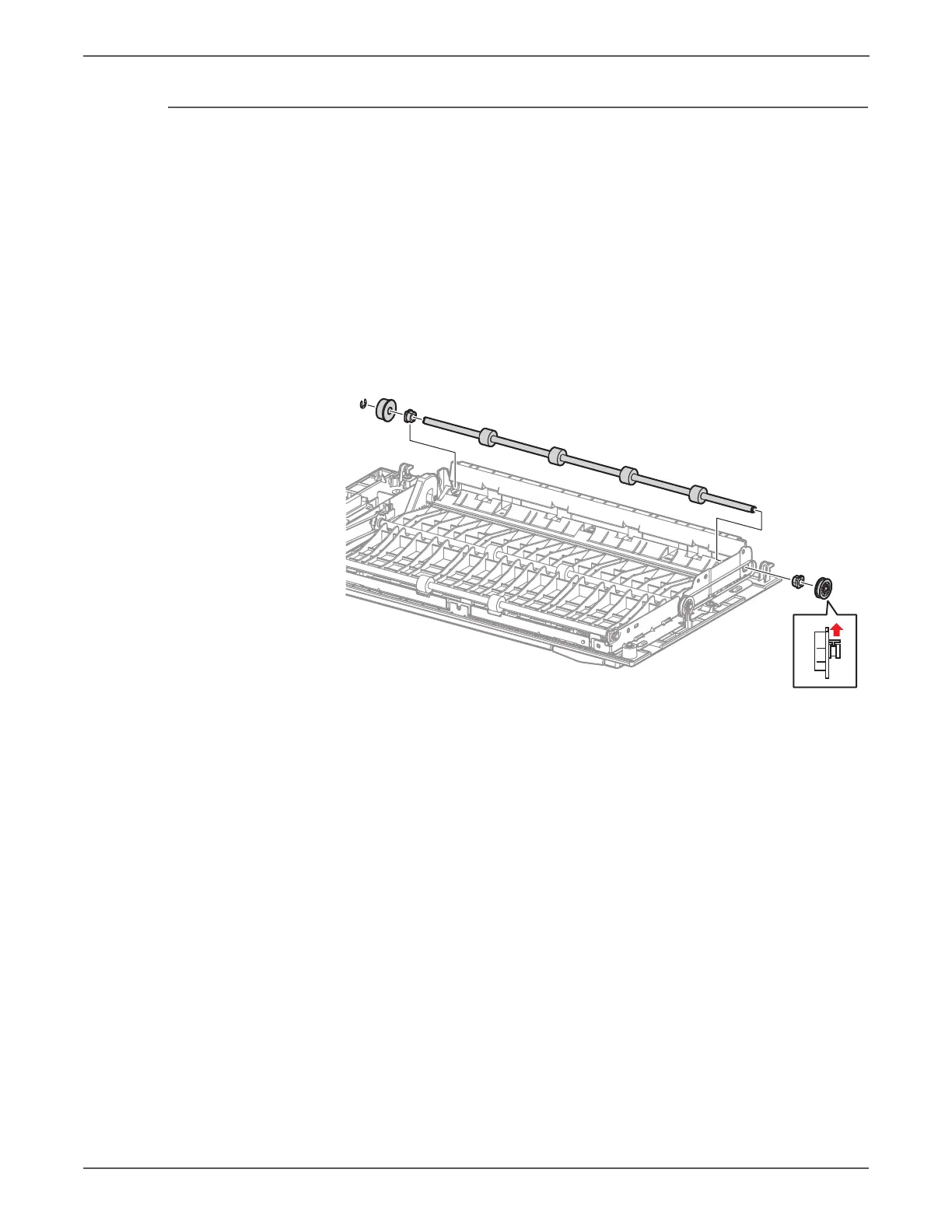

REP 14.19 Duplex Roller 3
PL14.6.14
1. Remove the Duplex Assembly (REP 14.12, page 8-161).
2. Remove the Inner Chute Assembly (REP 14.15, page 8-165).
3. Remove the Duplex Motor (REP 14.14, page 8-163, steps 2 to 5).
4. Release the hook of the pulley and remove it.
5. Remove the E-ring that secures the Sleeve Bearing and remove the Sleeve
Bearing.
6. Slide the Duplex Roller 3 sideways, remove the parts that secure the Sleeve
Bearing, and remove the Duplex Roller 3.
7. Remove the Gear Assembly from the Duplex Roller 3.
8. Remove the Sleeve Bearing from the Duplex Roller 3.
s7500-232

Xerox PHASER 7500 Specifications

General

Max Print Resolution	1200 x 1200 dpi
Monthly Duty Cycle	150, 000 pages
Standard Paper Capacity	550 sheets
Duplex Printing	Optional
Standard Memory	256 MB
Network Connectivity	10/100/1000Base-T Ethernet
Supported Operating Systems	Windows, Mac OS, Linux
Max Paper Capacity	2, 100 sheets
Connectivity	USB 2.0, Ethernet
PDL	PostScript 3, PCL 6, PDF
Print Speed	Up to 35 ppm
