Phaser 7500 Printer Service Manual 9-107
Parts List

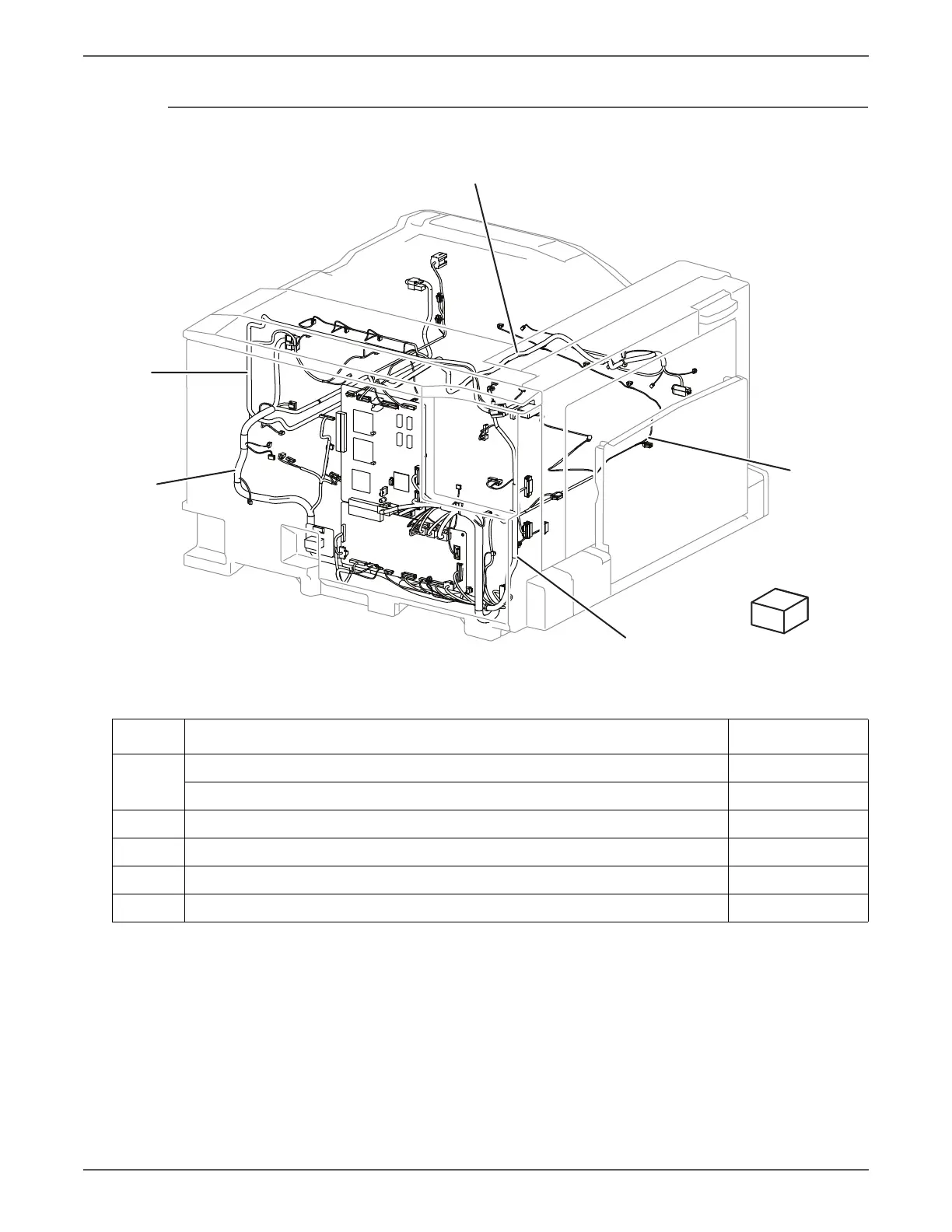

Parts List 18.4 Wire Harness
Parts List 18.4 Wire Harness
Item Description Part Number
1 Wire Harness Assembly (110V) (Drawer) 962K73870
Wire Harness Assembly (220V) (Drawer) 962K67742
2 Wire Harness Assembly (Main LH) 962K71720
3 Wire Harness Assembly (Main RH) (110V) 962K71700
4 Wire Harness Assembly (Main Top) 962K71710
5 Wire Harness Assembly (Main Front) 962K60332
s7500-063
Left
Rear
5
4
3
1
2
PL18.4
