Xerox PHASER 7500 Service Manual

Phaser 7500 Printer Service Manual 2-25
Theory of Operation
Paper Transport

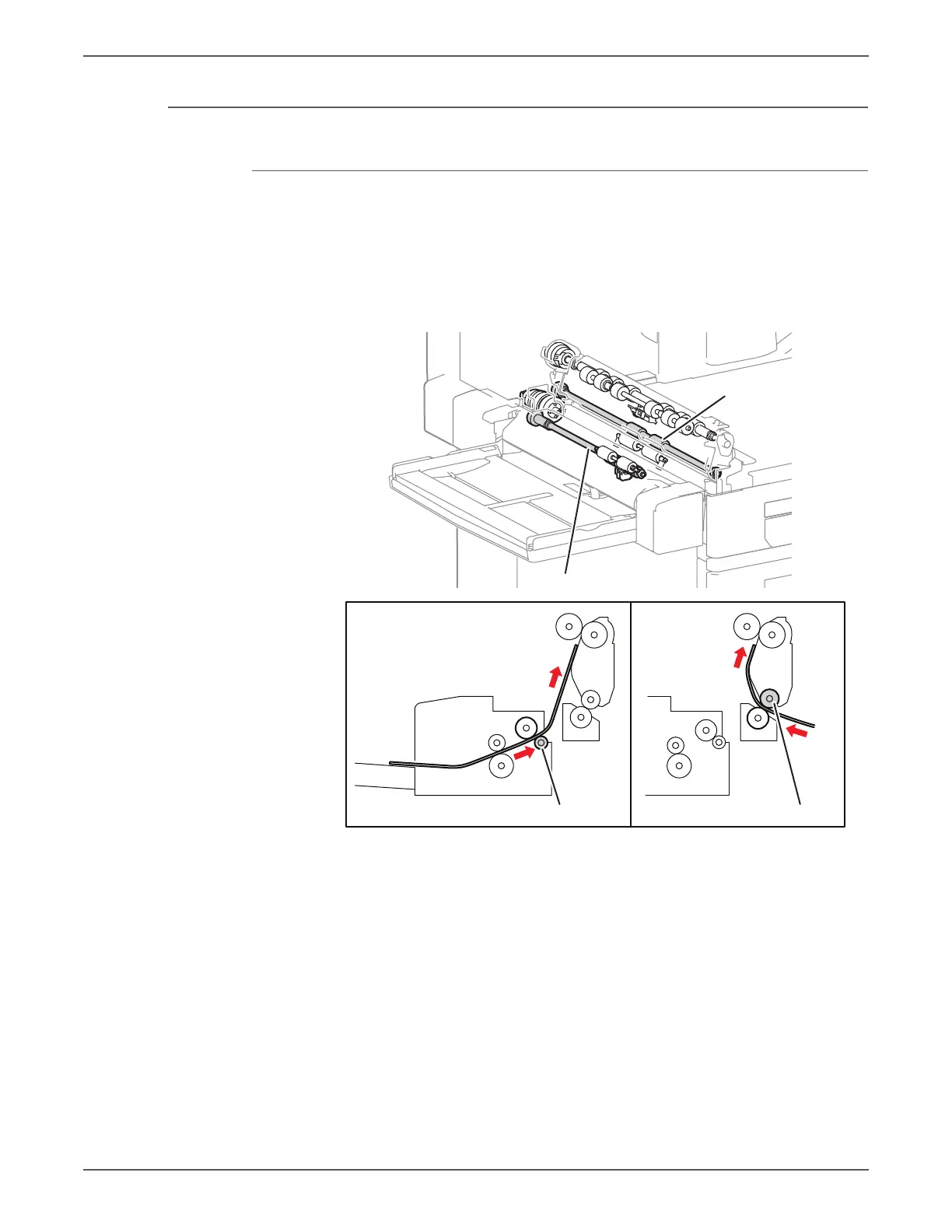

Paper Transport up to the Registration Area
Paper that was fed from the Paper Tray is transported to the Registration section
by the Takeaway Roll. The Takeaway Roll rotates from the drive that is provided by
the Main Drive Motor through the Takeaway Clutch.
Paper fed from the Tray 1 (MPT) is transported to the Registration section by the
Drive Roll. The Drive Roll rotates by the drive that is provided from the Main Drive
Motor through the Takeaway Clutch.
Drive Roller
Take Away Roller
s7500-362
Drive Roller
Take Away Roller

Xerox PHASER 7500 Specifications

General

Max Print Resolution	1200 x 1200 dpi
Monthly Duty Cycle	150, 000 pages
Standard Paper Capacity	550 sheets
Duplex Printing	Optional
Standard Memory	256 MB
Network Connectivity	10/100/1000Base-T Ethernet
Supported Operating Systems	Windows, Mac OS, Linux
Max Paper Capacity	2, 100 sheets
Connectivity	USB 2.0, Ethernet
PDL	PostScript 3, PCL 6, PDF
Print Speed	Up to 35 ppm
