Xerox PHASER 7500 Service Manual

2-26 Phaser 7500 Printer Service Manual
Theory of Operation
Paper Lead Edge Adjustment
When paper is fed to the Transfer section, the paper lead edge is aligned using the
buckle method in the Registration section.
The buckle method puts the paper that was fed and transported from the trays or
the Tray 1 against the Regi Roll, and buckles the paper. By rotating the Regi Roll
with the paper buckled, the paper can be transported with its lead edge aligned.
Paper Transport from the Registration Area
After the Lead Edge of the transported paper has been aligned in the Registration
section, it will then be transported at the appropriate time by the Regi Roll to the
Toner Transfer section.
The Regi Roll rotates from the drive that is provided by the Main Drive Motor
through the Regi Clutch.

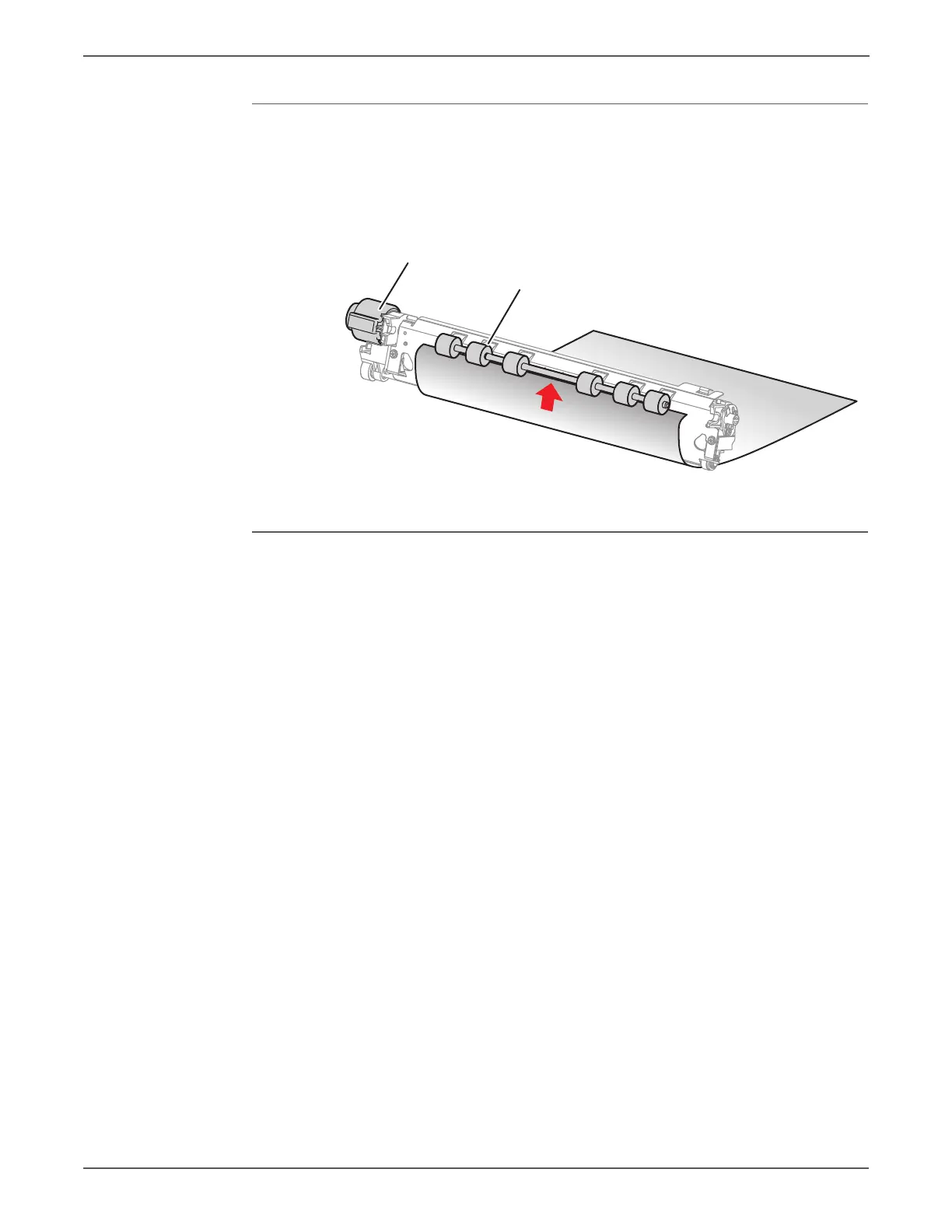

s7500-363
Registration Clutch
Registration Roller

Xerox PHASER 7500 Specifications

General

Max Print Resolution	1200 x 1200 dpi
Monthly Duty Cycle	150, 000 pages
Standard Paper Capacity	550 sheets
Duplex Printing	Optional
Standard Memory	256 MB
Network Connectivity	10/100/1000Base-T Ethernet
Supported Operating Systems	Windows, Mac OS, Linux
Max Paper Capacity	2, 100 sheets
Connectivity	USB 2.0, Ethernet
PDL	PostScript 3, PCL 6, PDF
Print Speed	Up to 35 ppm
