Xerox PHASER 7500 Service Manual

Phaser 7500 Printer Service Manual 8-189
Service Parts Disassembly
REP 18.3 MOB ADC Assembly
PL18.1.4
Caution
Do not expose the Imaging Unit to light for more than 5 minutes. Cover the
Imaging Unit to avoid damage.
Do not touch the surface of the Imaging Unit.
1. Remove the Deve Plate Assembly (REP 5.4, page 8-49).
2. Disconnect the wiring harness connectors P/J238, P/J272, and P/J610.
3. Release the wiring harness from the clip.

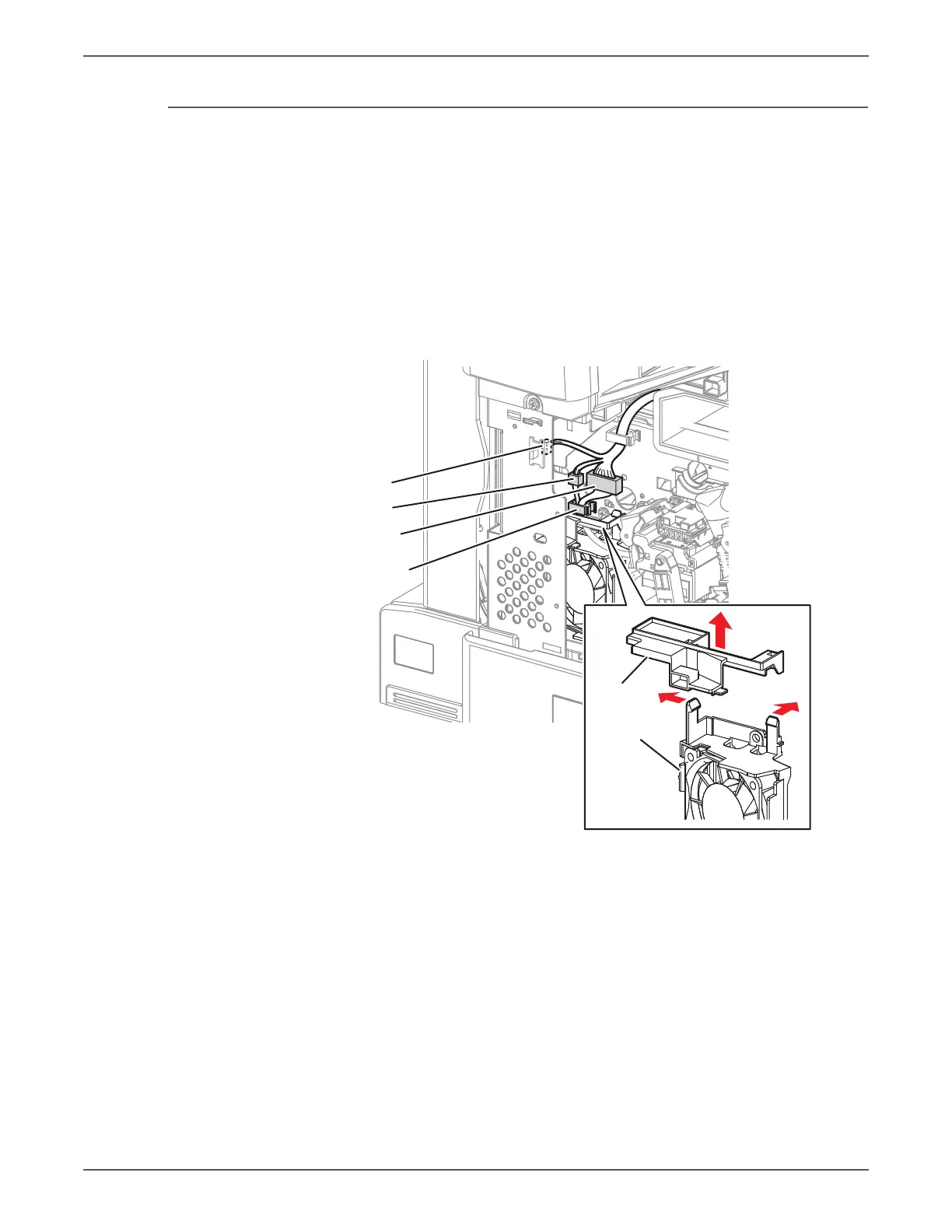

s7500-504
Clamp
P/J238
P/J610
P/J272
Plate F
Duct
Assembly P2
