Xerox PHASER 7500 - REP 3.11 Drum; Deve Drive Motor (Y, M, C)

Phaser 7500 Printer Service Manual 8-37
Service Parts Disassembly
REP 3.11 Drum/ Deve Drive Motor (Y, M, C)
PL3.3.5
1. Remove the PWB Chassis Unit (REP 18.10, page 8-197).
2. Disconnect the 2 wiring harness connectors that are connected to the Drum/
Deve Drive Motor (Y/M/C).

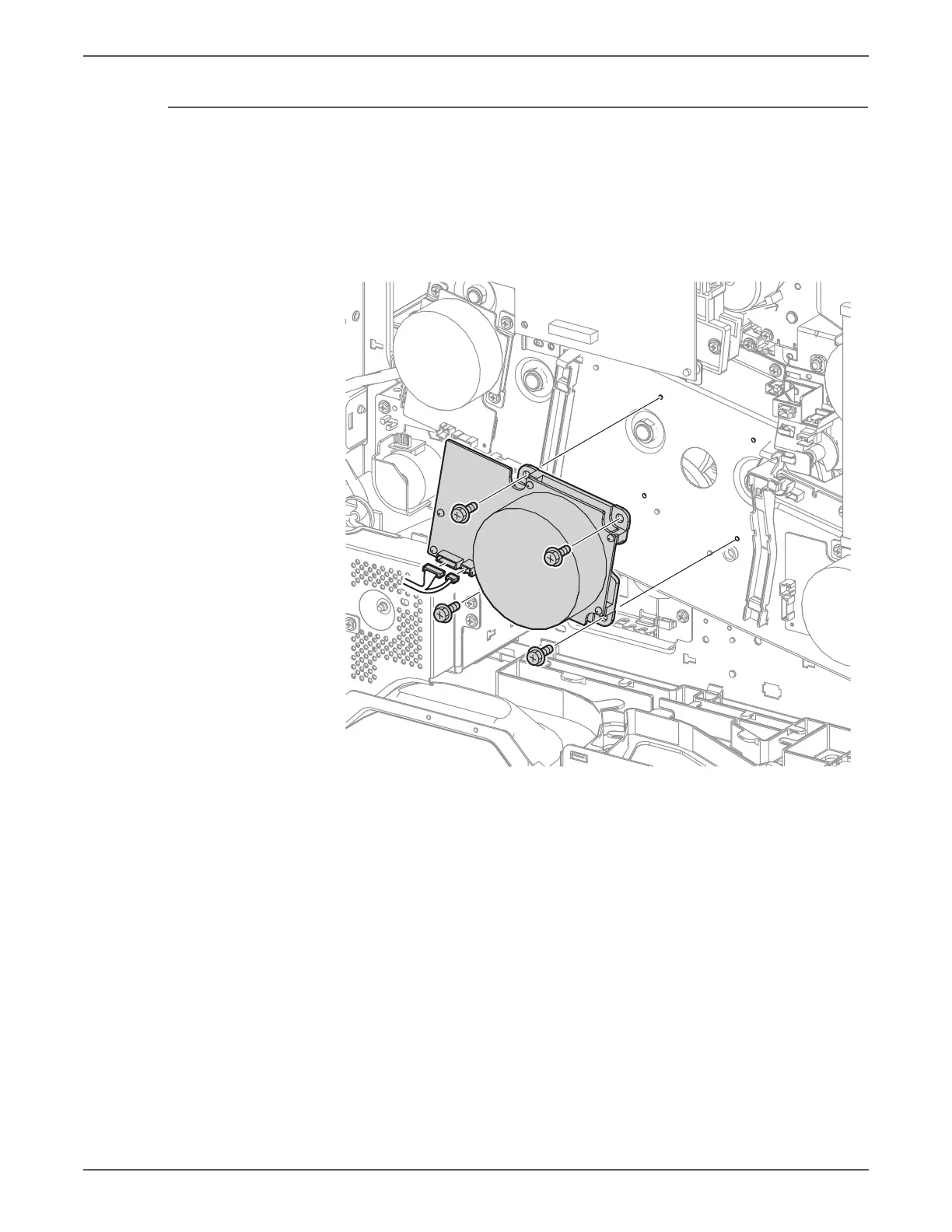

3. Remove 4 screws (silver, 6mm) that secure the Drum/ Deve Drive Motor (Y/M/
C) and remove the Drum/ Deve Drive Motor (Y/M/C).
s7500-090
