Phaser 7500 Printer Service Manual 8-13

Service Parts Disassembly

REP 1.4 Memory Card

PL35.1.8

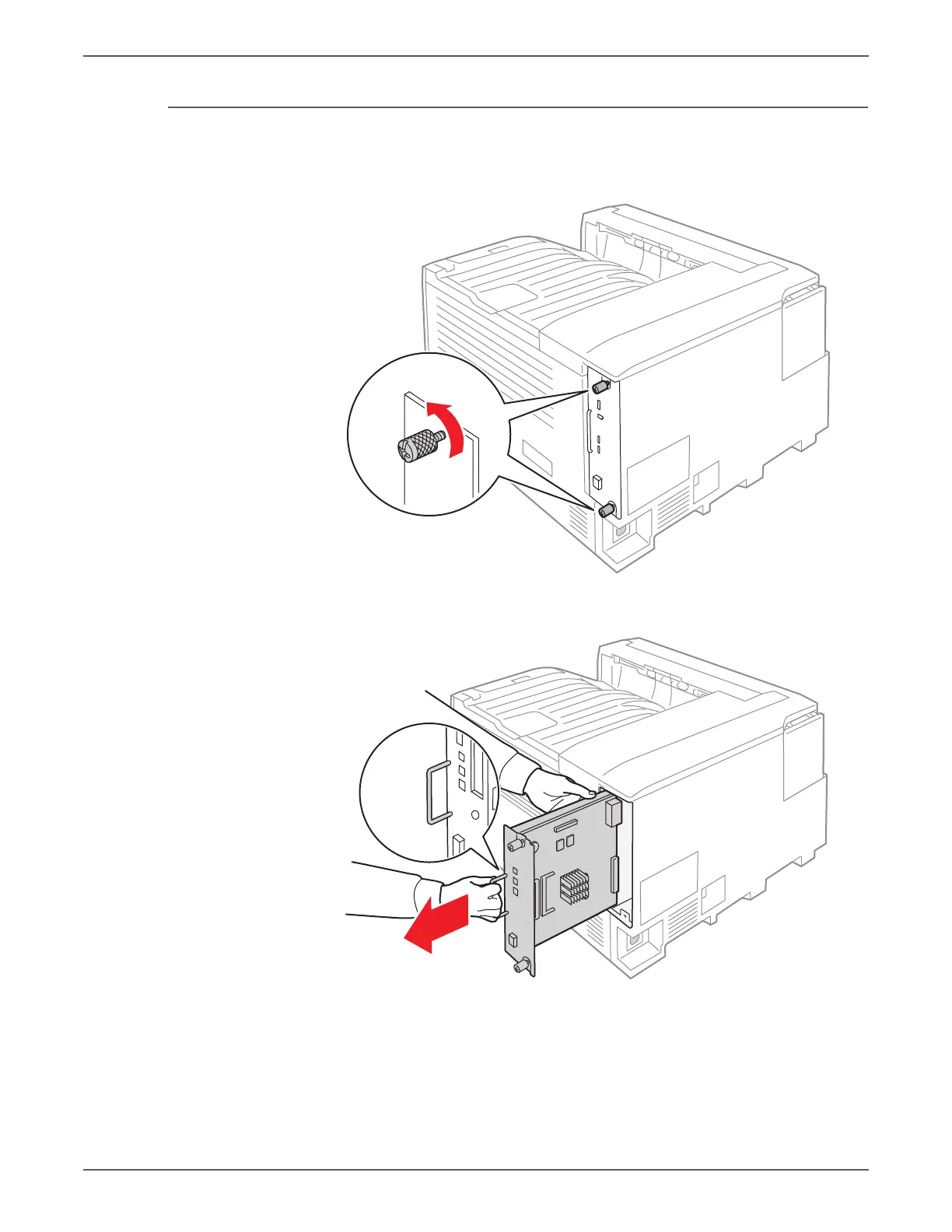

1. Loosen 2 screws that secure the Image Processor (I/P) Board.

2. Pull the I/P Board out from the printer.

s7500-456

s7500-457
