8-14 Phaser 7500 Printer Service Manual

Service Parts Disassembly

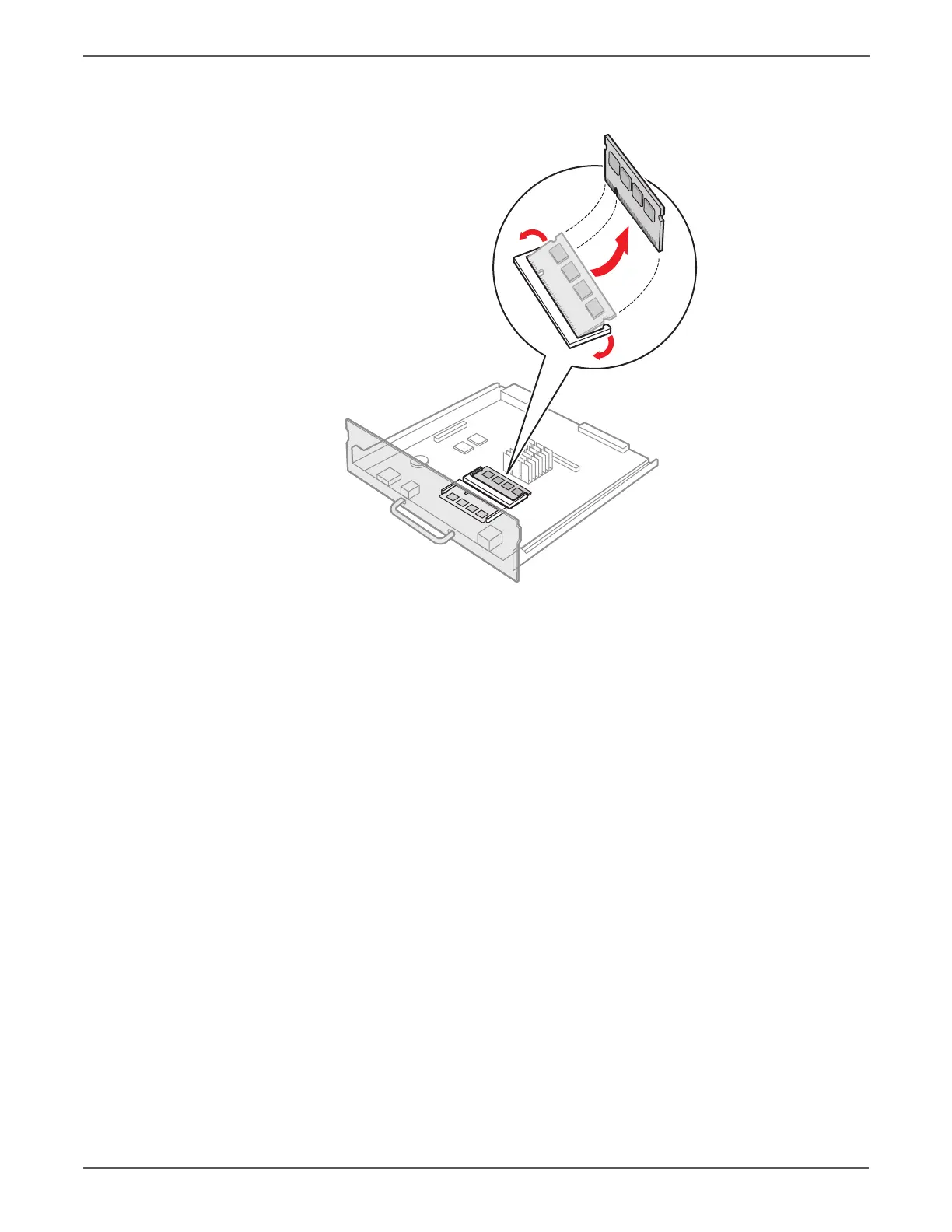

3. Release the 2 clips that secure the memory card and slide it out from the I/P

Board.

s7500-458
