Xerox PHASER 7500 Service Manual

8-190 Phaser 7500 Printer Service Manual
Service Parts Disassembly

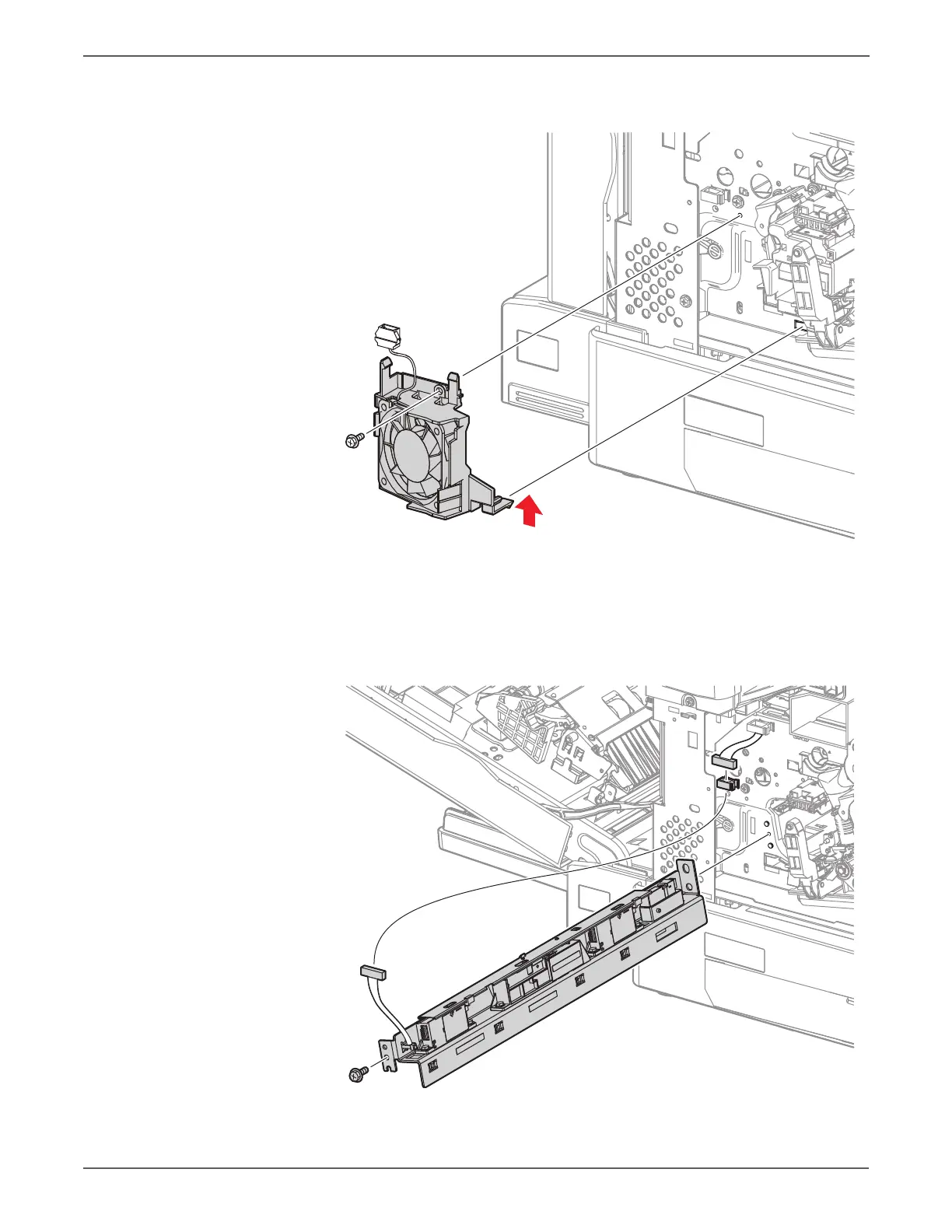

4. Remove 1 screw that secures the Process 2 Fan (PL4.2.13) and remove the
Process 2 Fan.
5. Release the wiring harness that is connected to the MOB ADC Assembly from
the clamp and disconnect the wiring harness connector.
6. Remove 1 screw (silver, 6mm) that secures the MOB ADC Assembly to the
printer.
7. Pull off the MOB ADC Assembly from the printer to remove it.
s7500-505
s7500-246
